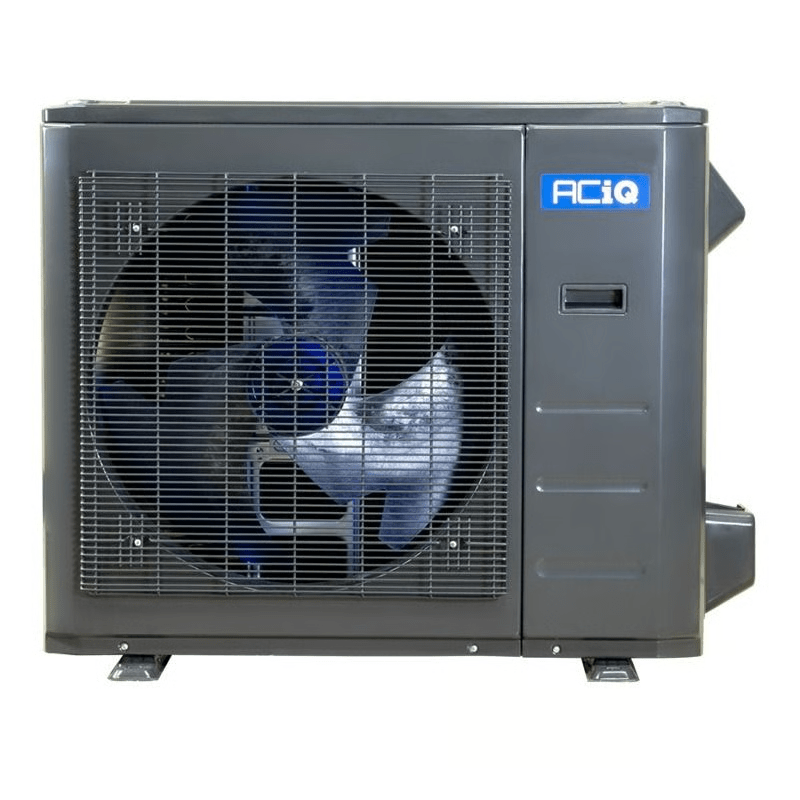

ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump

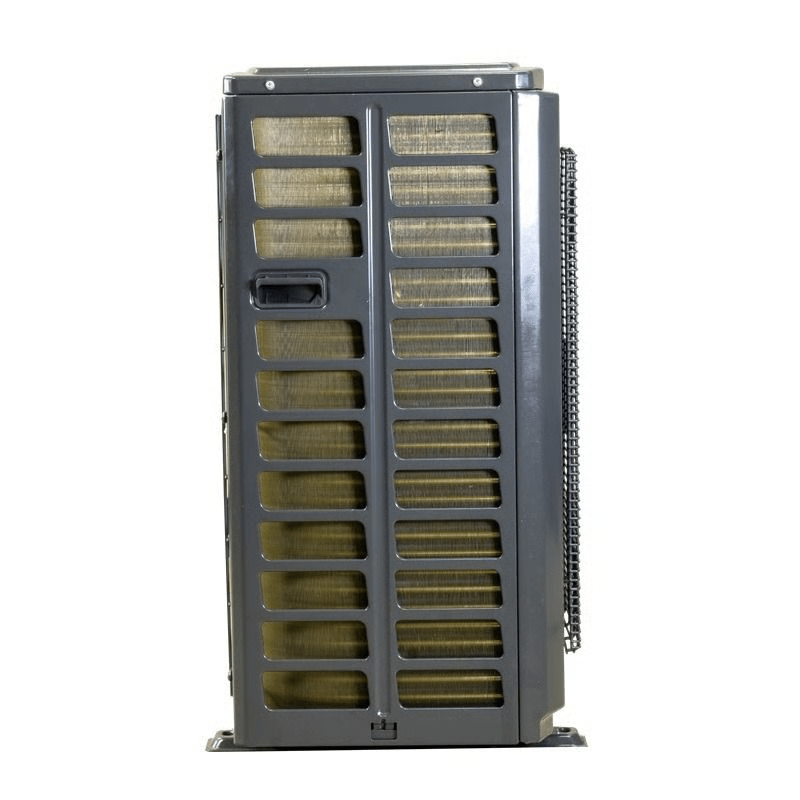

Side profile of the ACiQ 2.5 Ton R454B inverter heat pump, highlighting its slim design

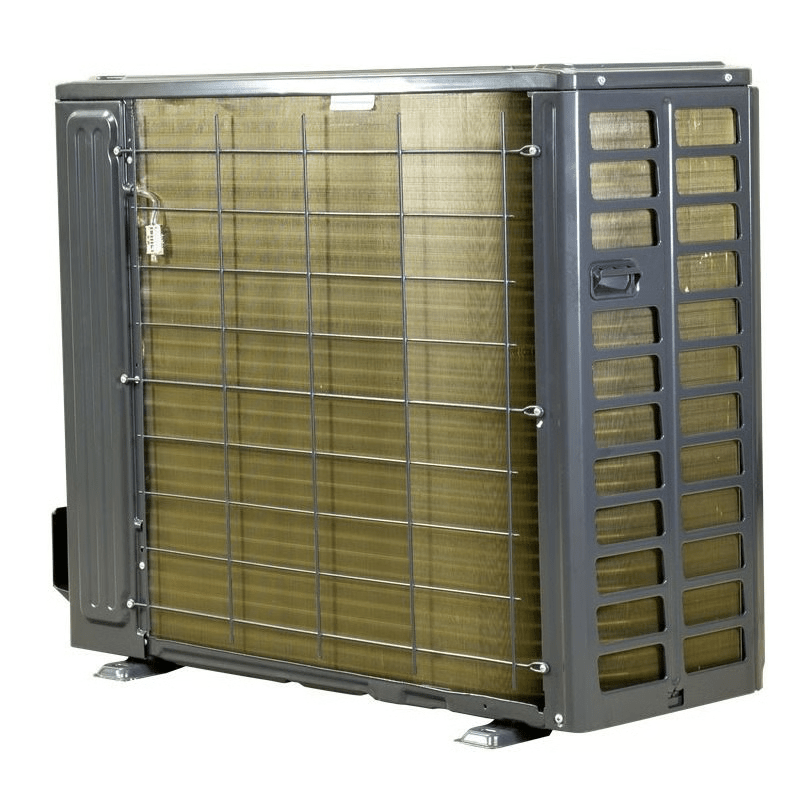

The back view of the ACiQ 2.5 Ton 17 SEER2 high-efficiency heat pump condenser

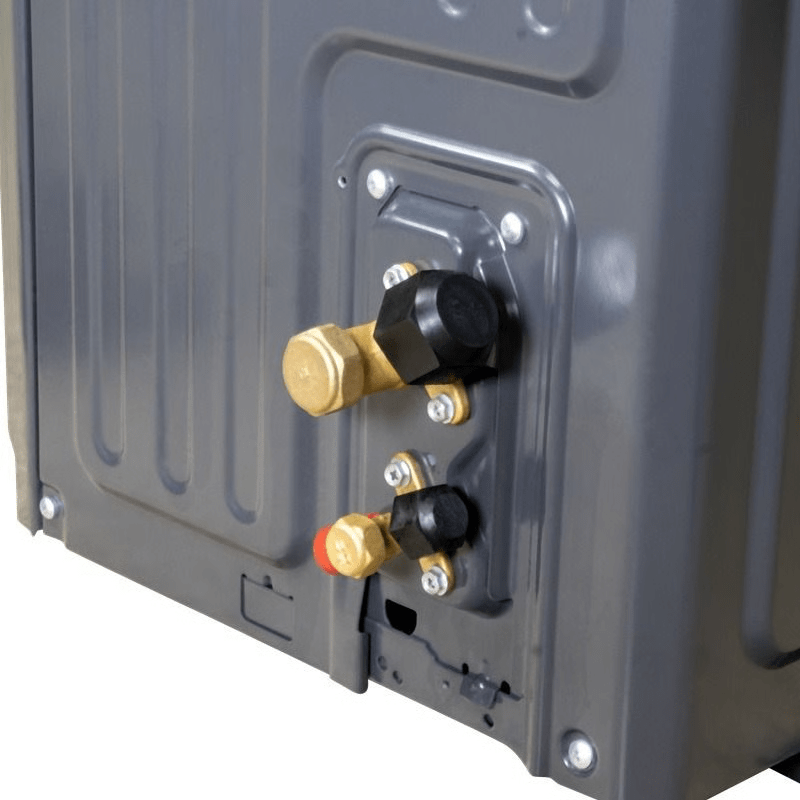

ACiQ 2.5 Ton 17 SEER2 high-efficiency heat pump Port

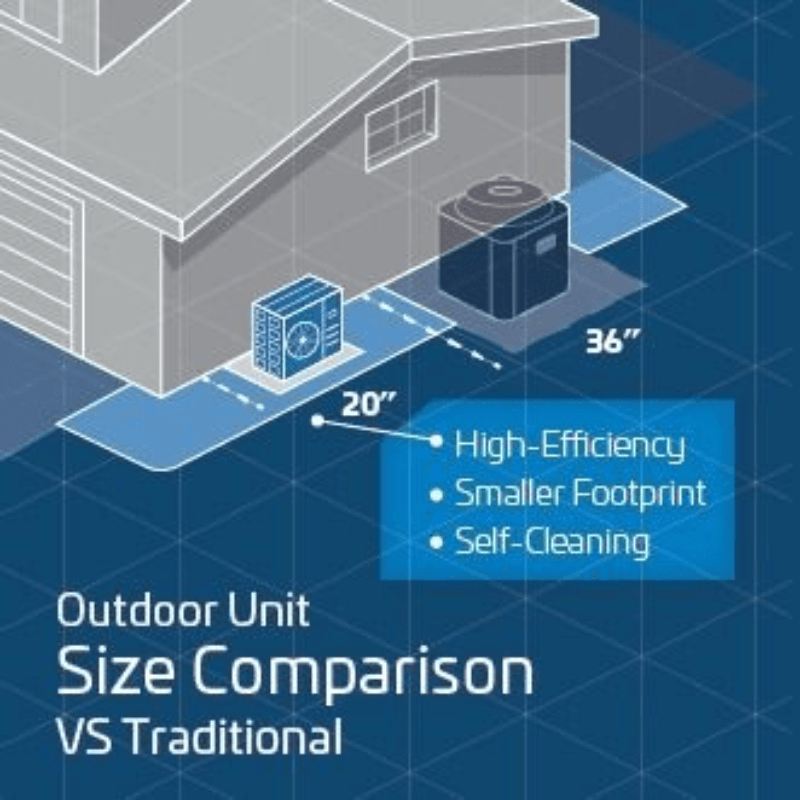

ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump Size Comparison
SmartHome App for ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump
Roll over image to zoom in Click on image to zoom
ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump Side profile of the ACiQ 2.5 Ton R454B inverter heat pump, highlighting its slim designThe back view of the ACiQ 2.5 Ton 17 SEER2 high-efficiency heat pump condenserACiQ 2.5 Ton 17 SEER2 high-efficiency heat pump Port How ACiQ Condensers Clean Themselves Automatically Self-Cleaning HVAC TechnologyACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump Size ComparisonSmartHome App for ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump

ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump | Inverter - R454B

ACiQ SKU: ACIQ-30-EHPD
Price:
$2,776.00

Description

Achieve Year-Round Comfort with the ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump!

The ACiQ 2.5 Ton High Efficiency Central Heat Pump is engineered to deliver reliable and energy-efficient performance in all weather conditions. With its advanced inverter technology, this heat pump adapts to heating and cooling demands, offering 17 SEER2 efficiency and exceptional reliability. The system operates efficiently from -13°F to 122°F outdoor temperatures, ensuring year-round comfort for commercial and residential spaces. Featuring a R454B refrigerant for eco-friendly performance, this system provides high-efficiency cooling and heating with quiet, consistent operation.



Ideal For:

✔ Commercial Offices & Buildings – Keeps indoor environments comfortable and energy-efficient throughout the year, reducing operational costs.

✔ Retail Stores – Provides consistent climate control for customer satisfaction and energy savings, even in varying foot traffic and heat loads.

✔ Hospitality & Restaurants – Ensures a quiet and efficient HVAC system for guest comfort without increasing overhead costs.

✔ Warehouses & Industrial Facilities – Ideal for large spaces, this system efficiently handles high demands for both heating and cooling.

✔ Educational Institutions – Perfect for classrooms and lecture halls, offering reliable, energy-saving performance for diverse climates.



Control Options:

  • Two-way communication wired controller
  • Optional WiFi-enabled wired controller
  • Wireless remote control
  • Third-party 24V thermostat



Certifications & Safety Features:

  • Energy Efficiency: With a 17 SEER2 rating, this system maximizes efficiency and reduces energy consumption.
  • Eco-Friendly Refrigerant: Utilizes R454B refrigerant, ensuring reduced environmental impact without compromising on performance.
  • Durable Construction: Gold Fin condenser coil coating ensures long-lasting protection and resistance to corrosion.
  • Warranty: Includes a standard manufacturer's warranty, providing peace of mind on your investment.
  • Manufactured & Mobile Home Approved: Suitable for various applications, from mobile homes to large commercial facilities.

ACiQ ACIQ-30-EHPD Features

  • Inverter Technology: Automatically adjusts compressor speed to match demand, delivering variable output (12,000-30,000 BTU cooling, 12,000-31,000 BTU heating) for optimal efficiency.
  • High Efficiency: Boasts a 17 SEER2 rating, reducing energy bills with eco-friendly R454B refrigerant.
  • Adaptive Sizing: Sizes for heating needs without short cycling, ensuring balanced cooling and humidity control.
  • Learning Condenser: Advanced sensors monitor temperature, pressure, and performance, optimizing efficiency post-startup.
  • Wide Temperature Range: Efficient cooling from -13°F to 122°F and heating from 5°F to 75°F outdoor temperatures.
  • Quiet Operation: Runs smoothly with minimal noise, even under high workloads.
  • Durable Construction: Gold fin condenser coil coating enhances longevity and resists corrosion.
  • Seamless Ducted Integration: Pairs with ACIQ-30-AHD air handler, connecting easily to existing ductwork.
  • Smart System: Features soft startups to maximize efficiency and reduce energy waste.
  • Multi-Positional Air Handler: Supports upflow, downflow, or horizontal installation for flexible setup.
  • Extended Warranty: Provides 7-year parts and 12-year compressor coverage with registration at ACiQ.com.
  • Energy Savings: Variable inverter technology eliminates short cycling, lowering operating costs compared to traditional heat pumps.

ACiQ 2.5 Ton 17 SEER2 High Efficiency Central Heat Pump Specs

SKU ACIQ-30-EHPD
Refrigerant Charge 25'
Weight (in lbs) 152.34
Brand/Manufacturer ACiQ
Replaces ACIQ-30-EHPB
Product Features Inverter, Two Stage Condenser, Variable Speed Condenser
HSPF2 8.5
Cooling BTU 30,000 BTU
Heating BTU 31,000 BTU
Maximum CFM 989
Decibel Level (dBA) 60
Electric Heat Heat Pump
Refrigerant R454B
SEER2 (Efficiency) 17
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 25 Amps
Min. Breaker Size 23 Amps
Tonnage 2.5 Ton
BTU/Tonnage 30,000 BTU/2.5 Ton
Min/Max Outdoor Temp for Heating -13°F - 75°F
Min/Max Outdoor Temp for Cooling -13°F - 122°F
Ambient Temperature Range -13°F - 122°F
Height 31.9"
Width 37.2"
Depth 16.1"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
