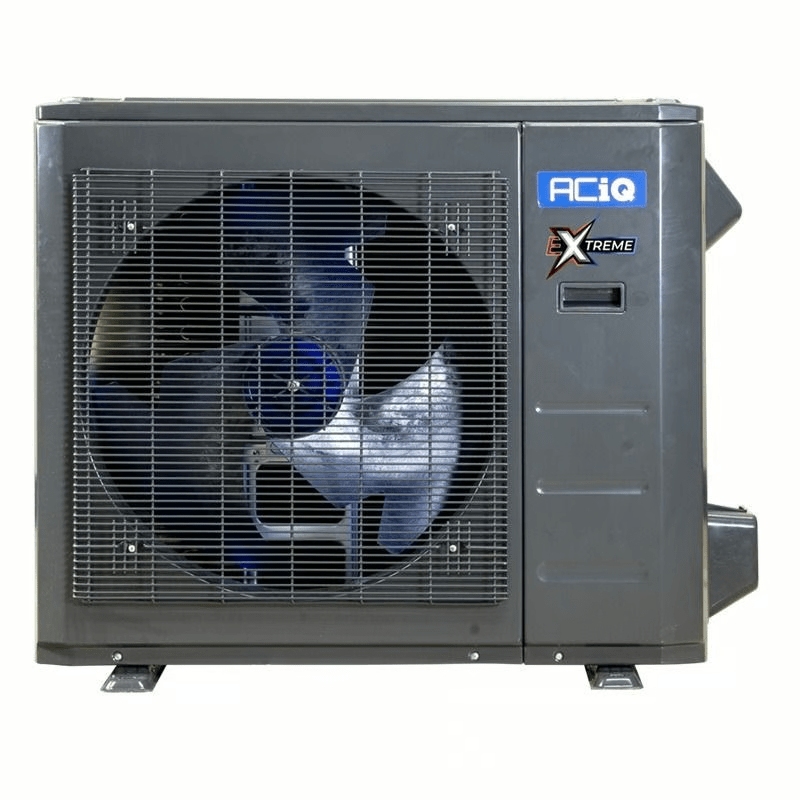

aciq 2.5 ton high efficiency heat pump ac condenser unit r454b compatible

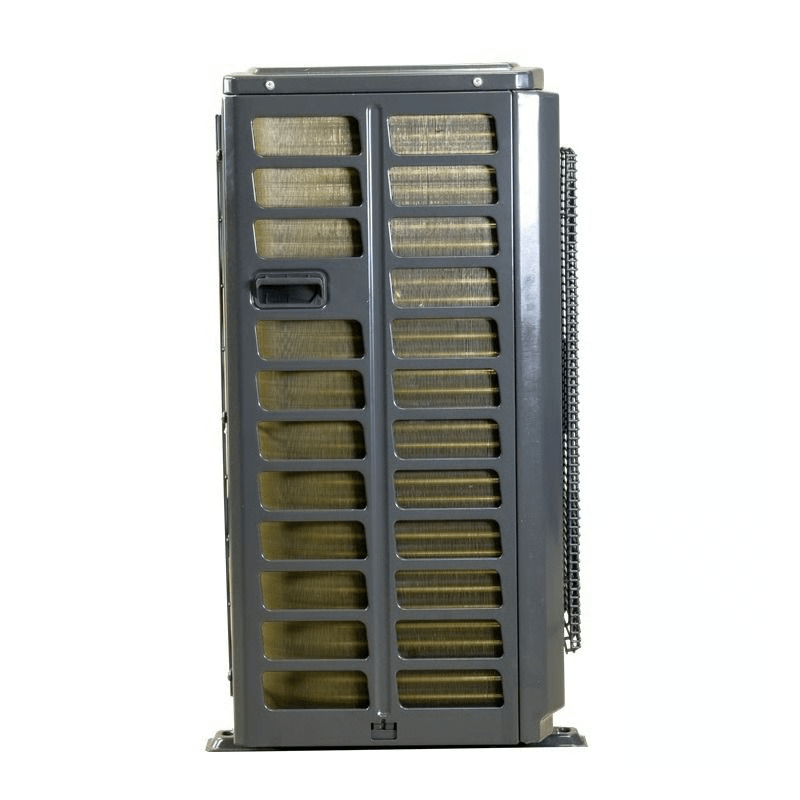

aciq inverter ac condenser 2.5 ton heat pump for central hvac systems

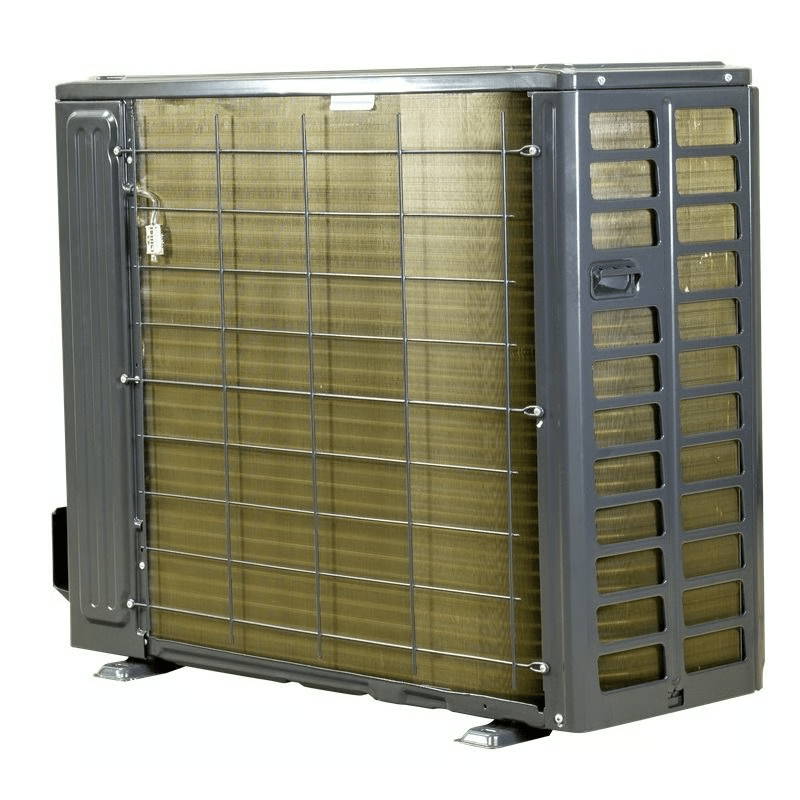

aciq 2.5 ton r454b ac condenser unit for home or light commercial use

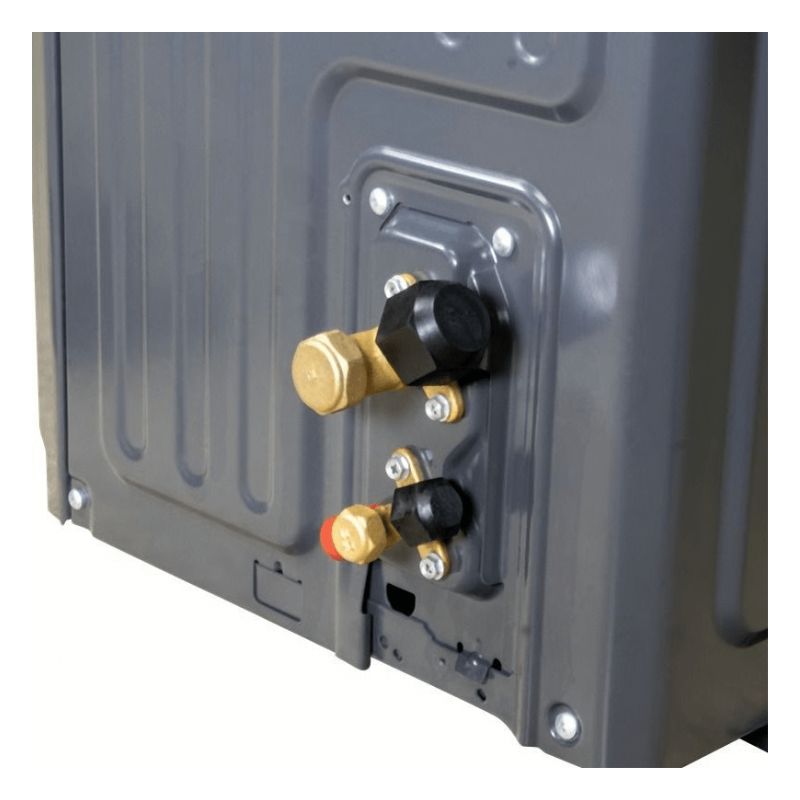

aciq energy efficient 2.5 ton heat pump ac condenser with r454b

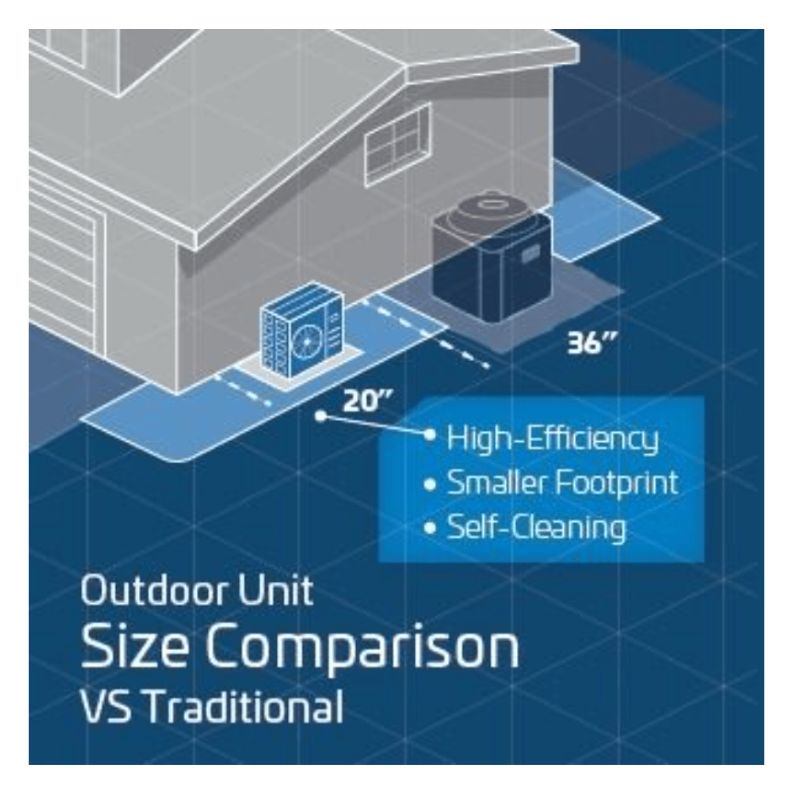

aciq 2.5 ton heat pump ac condenser size comparison for medium to large spaces
aciq 2.5 ton inverter heat pump comfort at your fingertips ac condenser
Roll over image to zoom in Click on image to zoom
aciq 2.5 ton high efficiency heat pump ac condenser unit r454b compatibleaciq inverter ac condenser 2.5 ton heat pump for central hvac systemsaciq 2.5 ton r454b ac condenser unit for home or light commercial useaciq energy efficient 2.5 ton heat pump ac condenser with r454b How ACiQ Condensers Clean Themselves Automatically Self-Cleaning HVAC Technologyaciq 2.5 ton heat pump ac condenser size comparison for medium to large spacesaciq 2.5 ton inverter heat pump comfort at your fingertips ac condenser

ACiQ 2.5 Ton 17.2 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B

ACiQ SKU: ACIQ-30-HPD
Price:
$2,876.00

Description

Maximize Year-Round Efficiency with the ACiQ 2.5 Ton Extreme Series Inverter Heat Pump

The ACiQ 2.5 Ton Extreme Series Heat Pump delivers powerful and adaptive comfort across all seasons—even when temperatures drop to -22°F. With smart inverter technology, extreme cold operation, and learning-based performance optimization, this system ensures reliable heating and cooling while reducing your overall energy use. Designed for spaces up to 1,500 sq ft, it’s ideal for both residential and light commercial installations in any climate zone.

Includes Built-In Base Pan Heater to Prevent Ice Formation on Coils



Ideal For

  • Residential Homes – Perfect for 1,200–1,500 sq ft areas in both mild and cold climates.
  • HVAC Pros & Installers – Flexible sizing, inverter-driven efficiency, and smart setup simplify installations.
  • Offices, Clinics & Light Commercial Buildings – Quiet, reliable heating and cooling ideal for professional environments.
  • Cold Climate Zones – Delivers consistent heating without full dependence on costly electric resistance backups.



Why Choose the ACiQ 2.5 Ton Extreme Series Inverter Heat Pump?

  • Extreme Cold Performance – Delivers 100% heating capacity at 0°F and 80% at -22°F, reducing reliance on costly backup systems.
  • Smart Inverter Technology – Adapts in real-time to your indoor and outdoor conditions, maximizing energy savings and comfort.
  • Quiet Operation – Runs at just 59 dBA, keeping noise to a minimum—even under full load.
  • Efficient Year-Round Use – 17.2 SEER2 and high HSPF ratings provide high-efficiency performance for both cooling and heating.
  • Built to Last – Durable gold fin condenser coil and intelligent internal components designed for long-term reliability.
  • American-Engineered Quality – Manufactured by ACiQ, known for performance and backed by up to a 12-year compressor warranty.
  • Flexible Sizing – Self-adjusting BTU range (12,000–34,000 BTU) ensures ideal performance without short cycling or overcooling.

ACiQ 2.5 Ton Extreme Series Heat Pump Features

  • Recommended Coverage – Suitable for areas between 1,000 to 1,200 sq ft depending on insulation and climate
  • Cooling Capacity – Variable output from 12,000 to 23,000 BTU for precise comfort control
  • Heating Capacity – Delivers up to 24,000 BTU with inverter-driven Extreme Heat performance
  • Energy Efficiency – 18.6 SEER2 rating helps lower energy bills over time
  • Compressor Type – Variable speed twin rotary inverter compressor for low-wear, high-efficiency operation
  • Refrigerant – Pre-charged with R454B refrigerant for eco-conscious performance
  • Smart Sensing Technology – Learns temperature patterns, duct pressure, and refrigerant levels for optimized output
  • Low Ambient Performance – Operates efficiently from -22°F to 122°F outdoor temperature range
  • Base Pan Heater – Prevents ice buildup on coils during cold-weather heating cycles
  • Durable Coil Protection – Gold fin condenser coating protects against corrosion and extends unit lifespan
  • Quiet Design – Low 59 dBA sound rating for minimal disruption in residential or commercial environments
  • Power Requirements – Runs on 208/230V, 1 Phase, 60 Hz with a 20A max breaker
  • Compact Dimensions – 35.04″ W x 13.46″ D x 26.5″ H for versatile outdoor installation
  • Warranty Coverage – 12-year compressor and 7-year parts warranty with online registration

ACIQ-30-HPD Specs

Brand/Manufacturer ACiQ
Refrigerant Charge 25'
Weight (in lbs) 174.60
Replaces ACIQ-30-HPB
Product Features Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser
HSPF2 10.0
Cooling BTU 30,000 BTU
Heating BTU 31,000 BTU
Maximum CFM 989
Decibel Level (dBA) 60.5
Electric Heat Heat Pump
Refrigerant R454B
SEER2 (Efficiency) 16.8
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 30 Amps
Min. Breaker Size 29.5 Amps
Tonnage 2.5 Ton
BTU/Tonnage 30,000 BTU/2.5 Ton
Min/Max Outdoor Temp for Heating -22°F - 75°F
Min/Max Outdoor Temp for Cooling -22°F - 122°F
Ambient Temperature Range -22°F - 122°F
Height 31.9"
Width 37.2"
Depth 16.1"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
