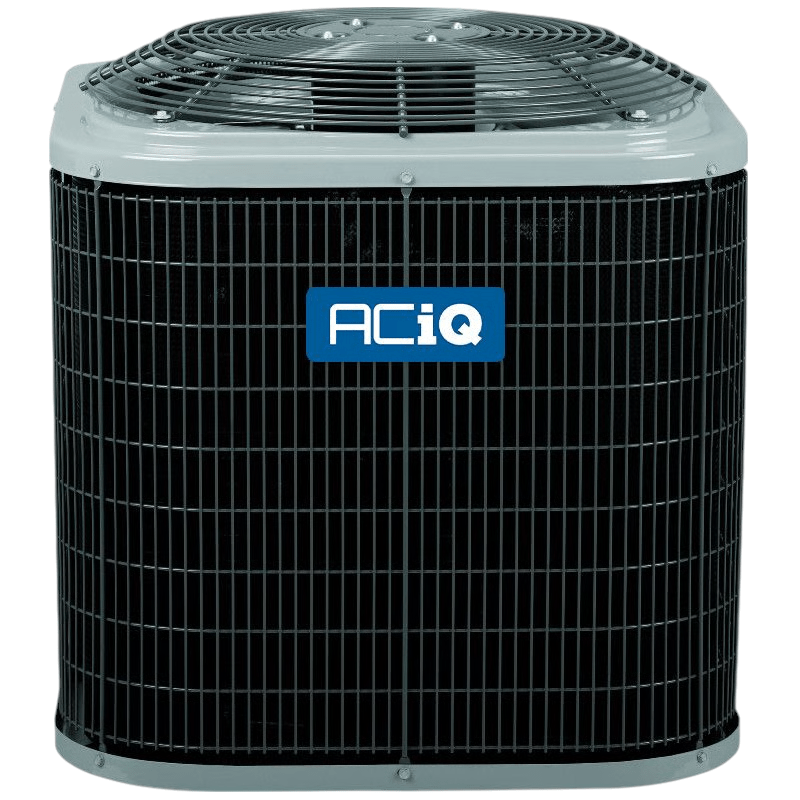

Front-center view of the ACiQ 2.5 Ton 14.3 SEER2 Heat Pump

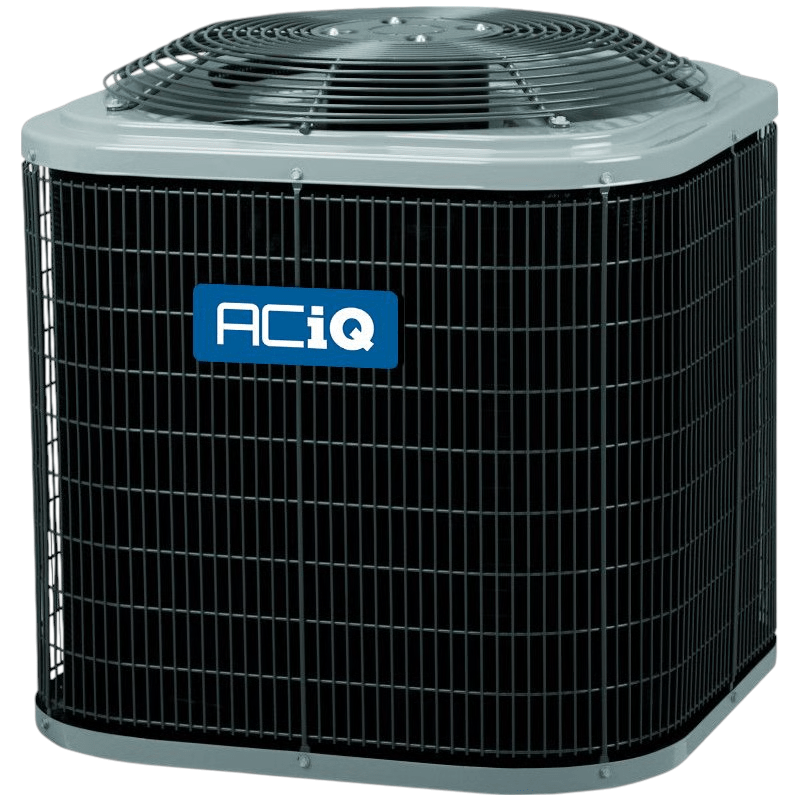

Left side view of the ACiQ 2.5 Ton 14.3 SEER2 Heat Pump

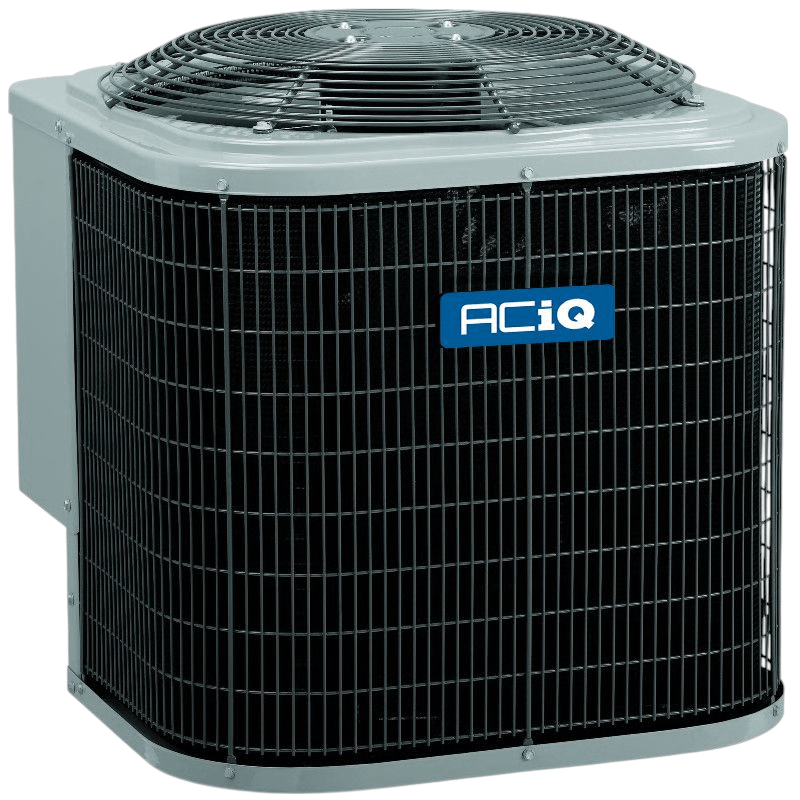

Right side view of the ACiQ 2.5 Ton 14.3 SEER2 Heat Pump

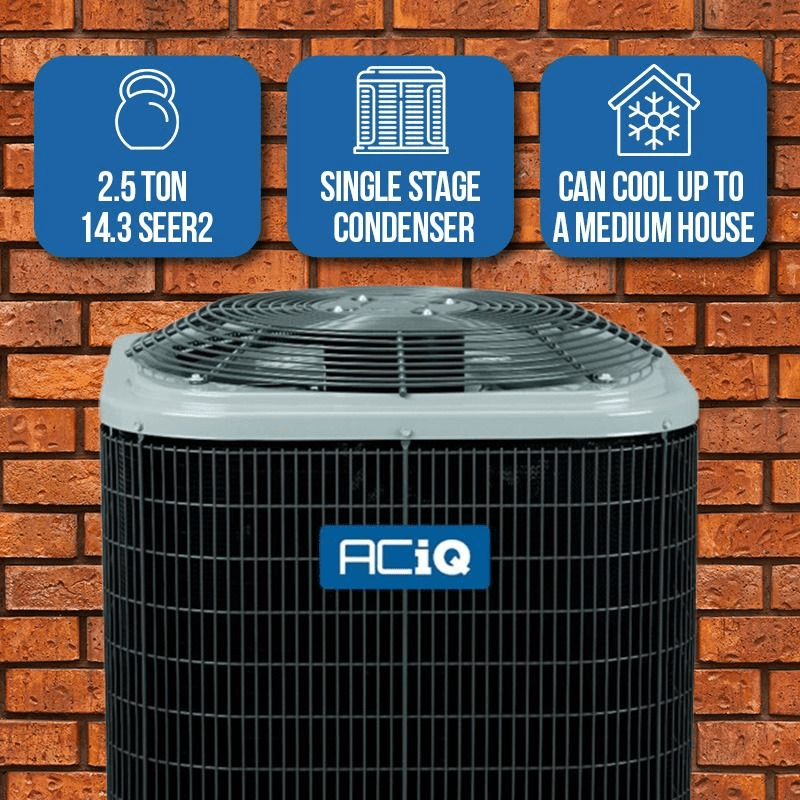

Front view of the ACiQ 2.5 Ton 14.3 SEER2 Heat Pump with Infographic features

Roll over image to zoom in Click on image to zoom

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump - R454B

Name: ACiQ 2.5 Ton 14.3 SEER2 Heat Pump - R454B
Brand: ACiQ
SKU: R5H5S30AKAAA
Price: 2750.00 USD
Availability: InStock

ACiQ SKU: R5H5S30AKAAA

Price:

$2,750.00

Quantity:

Maximize Comfort & Efficiency with ACiQ 2.5 Ton 14.3 SEER2 Heat Pump – R454B Ready

The ACiQ R5H5S30AKAAA is a 2.5-ton heat pump condenser that delivers efficient heating and cooling for small to medium-sized homes. With a 14.3 SEER2 rating and factory pre-charged R-454B refrigerant, it ensures long-term savings on energy bills and a fast, hassle-free installation. This unit provides dependable performance, offering efficient heating down to 35°F and reliable cooling in warmer conditions. Designed for durability and environmental compliance, it’s a solid choice for any home comfort system.

Ideal For

HVAC Installers & Technicians – Pre-charged for 15 ft line sets, ensuring faster installs and less labor time.
Small to Medium-Sized Homes – Provides efficient year-round comfort for homes with moderate heating and cooling needs.
Property Managers & Builders – Delivers 5–7% more efficiency compared to standard 13.4 SEER2 systems, reducing long-term operational costs.
Eco-Conscious Projects – Uses R-454B refrigerant, a low-GWP option that meets modern environmental standards.
A2L-Compliant Installations – Pair with R-454B-compatible air handlers or evaporator coils with leak detection for safe operation and warranty protection.

Certifications & Safety Features

10-Year Limited Parts Warranty (valid with certified coil installation and online registration)
Internal compressor protection and pressure relief valve
UL Listed for safety compliance
A2L Safety Compliance: Must be installed with R-454B-compatible units that include leak detection to ensure safety and maintain warranty

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump – Key Features & Benefits

2.5 Ton / ~30,000 BTU/hr Heating & Cooling – Ideal for small to medium homes and residential zones.
14.3 SEER2 High Efficiency – Achieves 5–7% more efficiency than standard 13.4 SEER2 units, saving on energy costs.
Single-Stage Scroll Compressor – Quiet and reliable operation with minimal maintenance.
Pre-Charged with R-454B Refrigerant – Ready for quick installation, eliminating the need for manual refrigerant charging.
Reinforced Cabinet Design – Corner posts and inlet grille protect internal components from damage.
Quiet Performance – Operates quietly for enhanced indoor comfort.
Heating Down to 35°F – Efficiently heats in moderate climates; backup heat strip required for temperatures below 35°F.
Factory Run-Tested for Reliability – Ensures high performance and durability.
Filter Drier Included – Maintains clean refrigerant lines for optimal system performance.
10-Year Warranty – Extended warranty with online registration for added peace of mind.

ACiQ R5H5S30AKAAA Heat Pump Specs

SKU	R5H5S30AKAAA
Refrigerant Charge	15'
Weight (in lbs)	188
Brand/Manufacturer	ACiQ
Product Features	New Refrigerant Compliant
HSPF2	7.5 - 7.8
Cooling / Heating BTU	30,000
Maximum CFM	3000
Decibel Level (dBA)	70
Motor RPM	825 RPM
Horsepower	1/10 HP
Refrigerant	R454B
SEER2 (Efficiency)	14.3
Condenser Stages	Single Stage
Compressor Type	Scroll
Liquid Valve Size	3/8"
Suction Valve Size	3/4"
Electrical	208/230v 1Ph 60Hz
Phase	Single Phase
Max Breaker Size	25 Amps
Min. Breaker Size	16.3 Amps
Tonnage	2.5 Ton
Height	38 7/16"
Width	31 3/16"
Depth	31 3/16"
Warranty	10 Years Parts with Online Registration

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump Resources

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump Manual

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump Specs Sheet

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump Warranty

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
ACiQ Essentials: 6-year compressor, 4-year parts
A.C. and Heat Pump Condenser: 10-year compressor and coil
Furnace: Lifetime warranty for original owner
Air Handler and Coil: 10-year parts for original owner
Residential Packaged Units: Lifetime heat exchanger for original owner
PTAC: 7-year compressor, 1-year parts
Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
Hybrid Water Heater: 12-year tank, 10-year parts
Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

System Diagnosis
Method of Resolution
Warranty Acceptance
Faulty Parts Inspected
Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.
