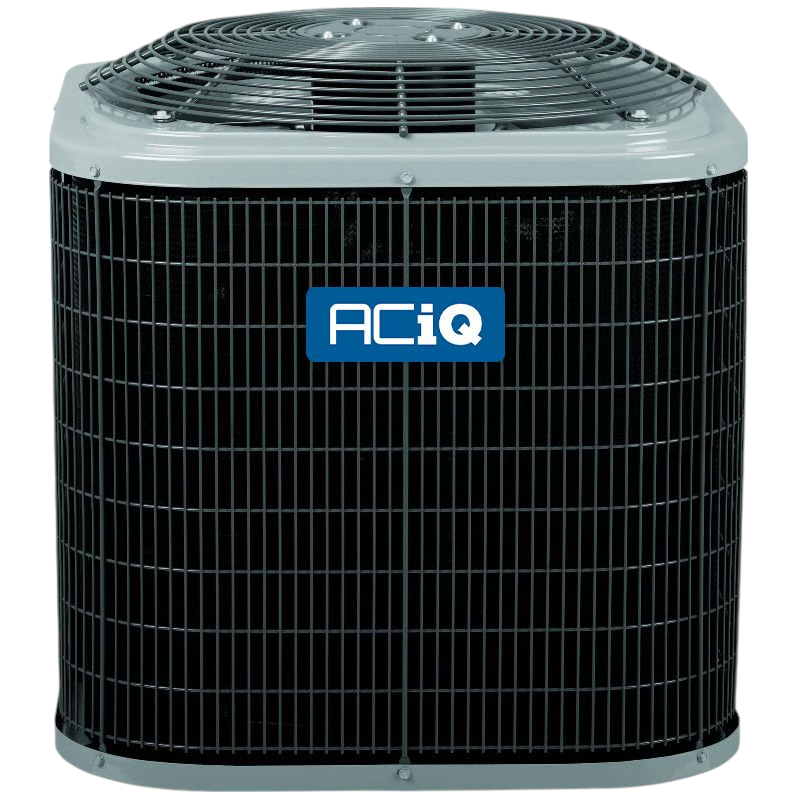

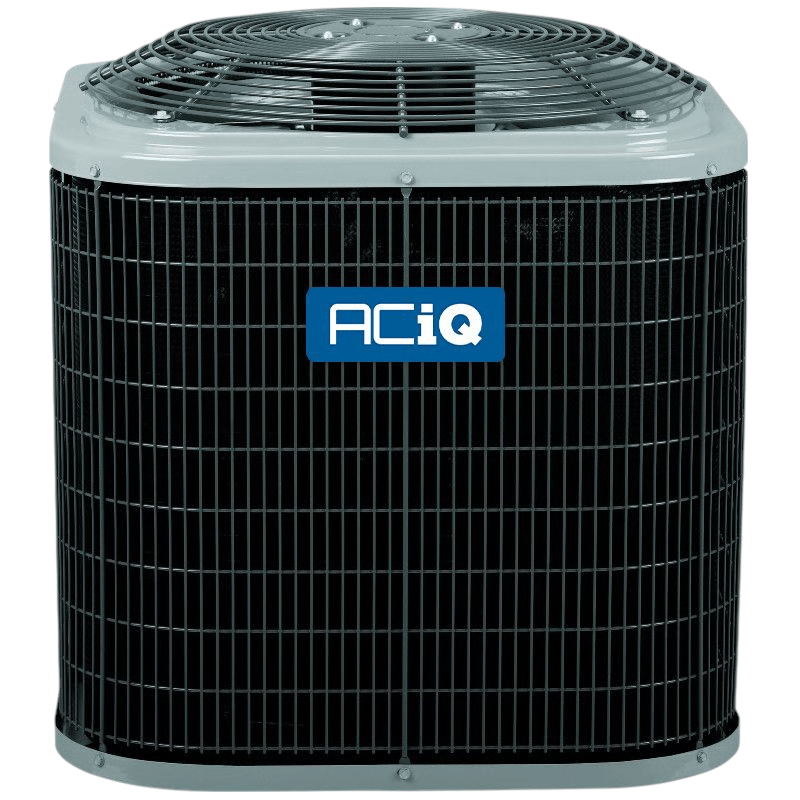

Front-center view of the ACiQ 2.5 Ton 13.4 SEER2 Air Conditioner Condenser

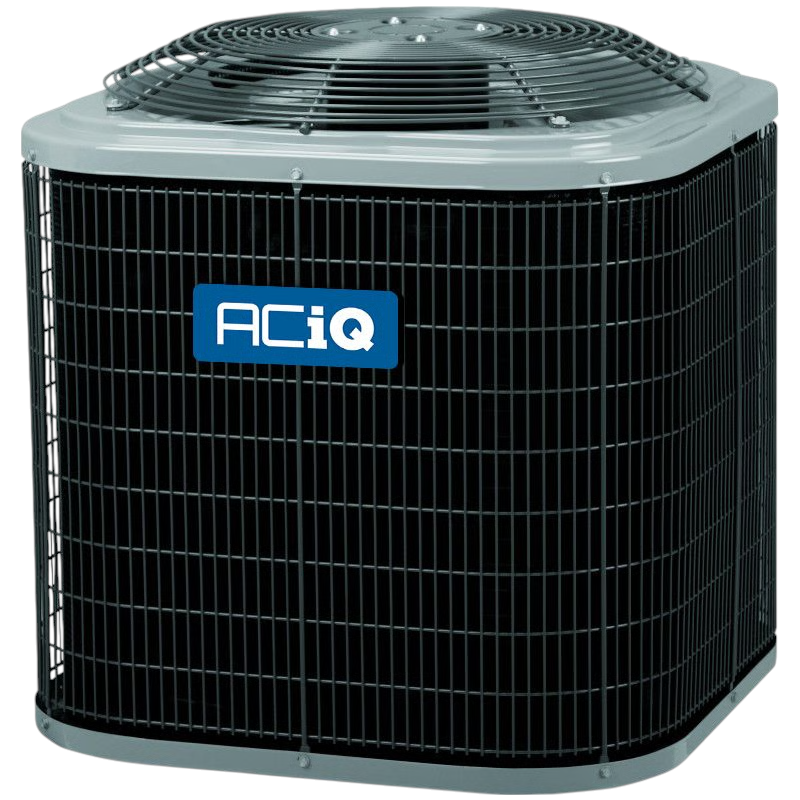

Left side view of the ACiQ 1.5 Ton 13.4 SEER2 Air Conditioner Condenser

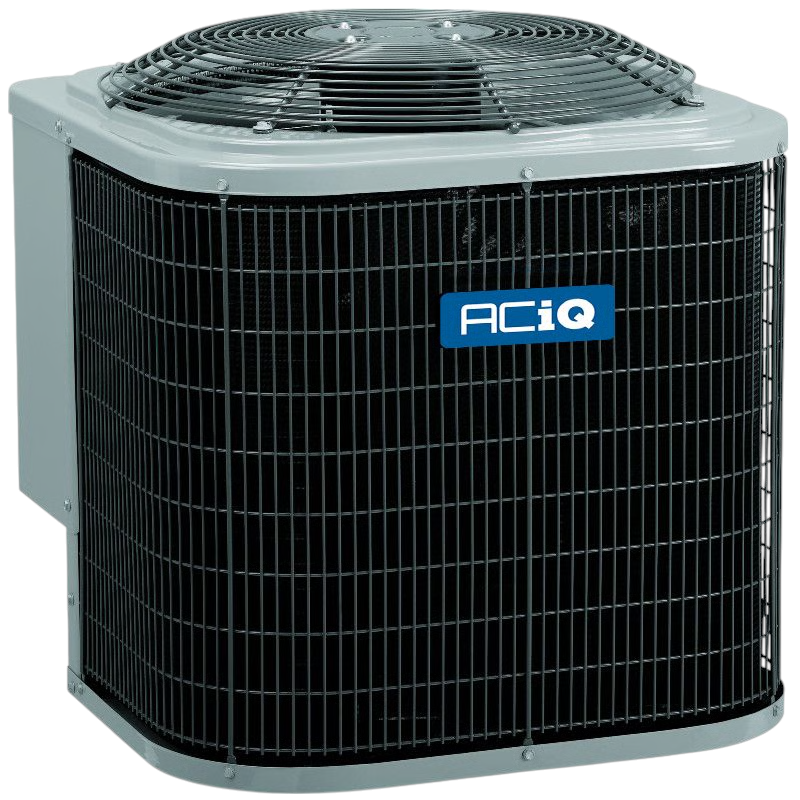

Right side view of the ACiQ 2.5 Ton 13.4 SEER2 Air Conditioner Condenser

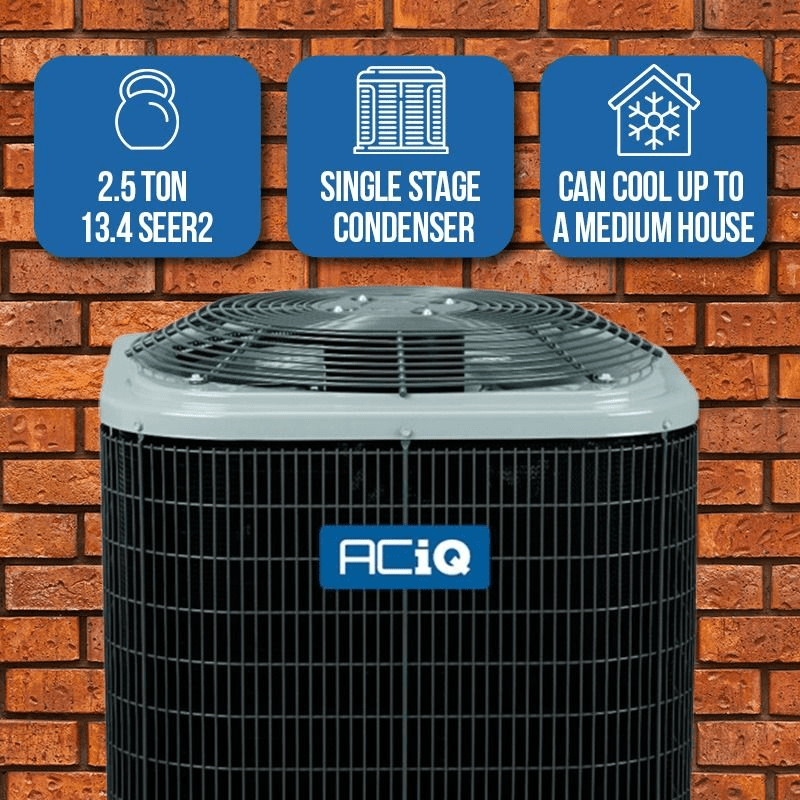

Front view of the ACiQ 2.5 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 2.5 Ton 13.4 SEER2 Air Conditioner Condenser Left side view of the ACiQ 1.5 Ton 13.4 SEER2 Air Conditioner CondenserRight side view of the ACiQ 2.5 Ton 13.4 SEER2 Air Conditioner CondenserFront view of the ACiQ 2.5 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features

ACiQ 2.5 Ton 13.4 SEER2 Air Conditioner Condenser - R454B

ACiQ SKU: R5A4S30AKANA
Price:
$1,655.00

Description

Efficient Comfort for Mid-Sized Spaces with ACiQ R5A4S30AKANA 2.5 Ton Condenser!

The ACiQ R5A4S30AKANA is a 2.5-ton AC-only condenser designed to deliver dependable cooling for small to medium-sized homes and light commercial spaces. With a 13.4 SEER2 efficiency rating and pre-charged R-454B refrigerant, it offers a balance of performance, eco-compliance, and cost-efficiency. Its rugged build and smart features make it a reliable choice for professionals who value long-term durability and hassle-free installation.



Ideal For

  • HVAC Professionals & Installers – Save labor time with factory-charged refrigerant for a 15 ft line set—no manual charging needed.
  • Small to Medium-Sized Homes – Perfectly sized for comfortable cooling in average residential environments.
  • Property Managers & Developers – 5–7% higher energy efficiency than SEER1 13 units means reduced operational costs over time.
  • Eco-Conscious Projects – Uses R-454B, a low-GWP, non-ozone-depleting refrigerant that complies with upcoming environmental regulations.
  • Seasonal Applications in Colder Regions – Compatible with optional low-ambient kits for performance down to 0°F.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (when properly registered and installed with a certified coil)
  • Built-in compressor overload protection and internal pressure relief valve
  • UL Listed for safety and quality compliance

ACiQ 2.5 Ton 13.4 SEER2 Air Conditioner Condenser – Key Features & Benefits

  • 2.5 Ton / ~30,000 BTU/hr Cooling Capacity – Ideal for small to mid-sized homes needing reliable, even cooling.
  • 13.4 SEER2 Efficiency Rating – Provides 5–7% better energy performance than standard 13 SEER1 units.
  • Single-Stage Scroll Compressor – Simplifies system design while delivering durable and consistent performance.
  • Pre-Charged with R-454B Refrigerant – Environmentally responsible and optimized for fast, trouble-free installation.
  • Durable Steel Cabinet – Reinforced corner posts and protective inlet grille defend against weather and debris.
  • Flexible Installation Support – Works with a variety of coil or air handler pairings for maximum compatibility.
  • Low-Ambient Ready – Operates in cold temperatures with optional kits, perfect for varying climates.
  • Quiet Performance – Maintains indoor and outdoor comfort with minimal operational noise.

ACiQ R5A4S24AKANA Specs

SKU R5A4S30AKANA
Refrigerant Charge 15'
Weight (in lbs) 166
Brand/Manufacturer ACiQ
Replaces R4A4S30AKANA
Equivalent Carrier Equivalent: 24ABB330ABN3/ Tempstar Equivalent: R4A330GKH/ Bryant Equivalent: 113ANA030000
Cooling BTU 30000
Maximum CFM 2700
Decibel Level (dBA) 72 Decibels
Motor RPM 825
Horsepower 1/10 HP
Refrigerant R454B
SEER2 (Efficiency) 13.4
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 25 Amps
Min. Breaker Size 16.2 Amps
Tonnage 2.5 Ton
Connection Sweat
Certification UL Listed
Height 31 11/16"
Width 31 3/16"
Depth 31 3/16"
Warranty 10 Years Parts Warranty with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
