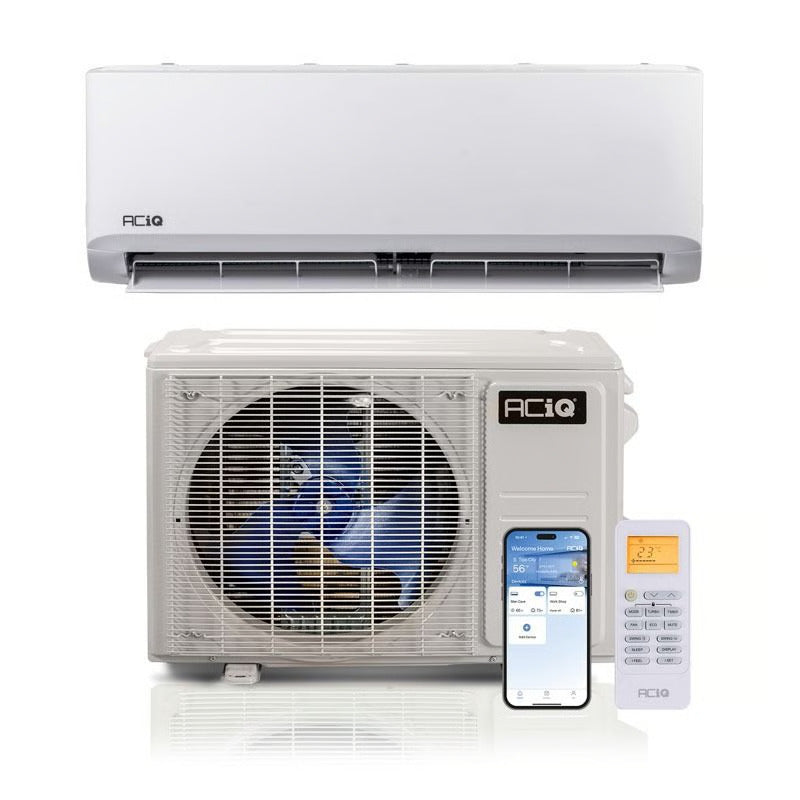

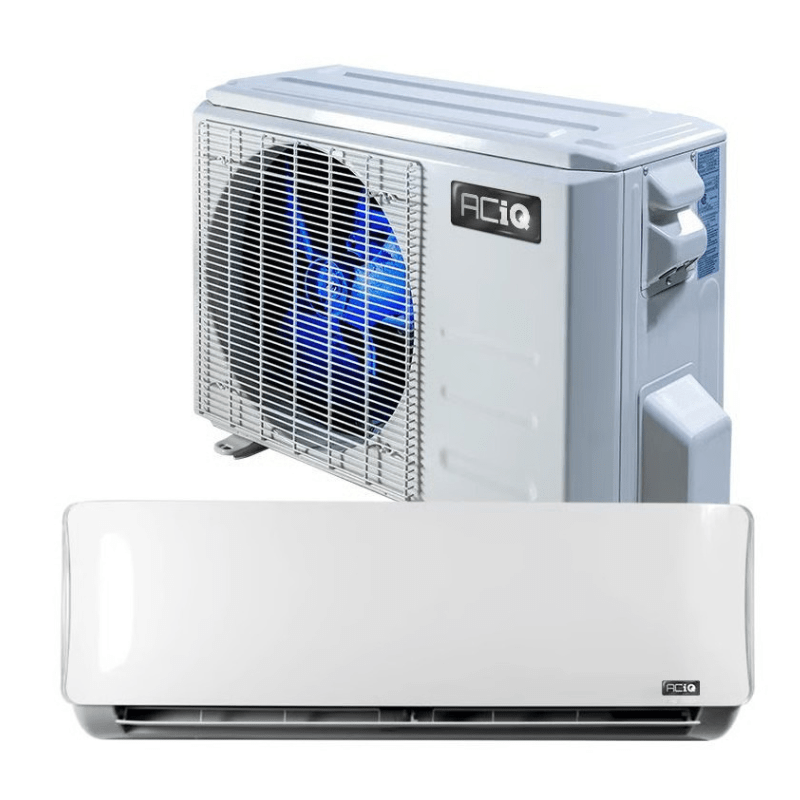

ACiQ 12000 BTU 23.1 SEER2 mini split air conditioning system displaying both indoor and outdoor units side by side

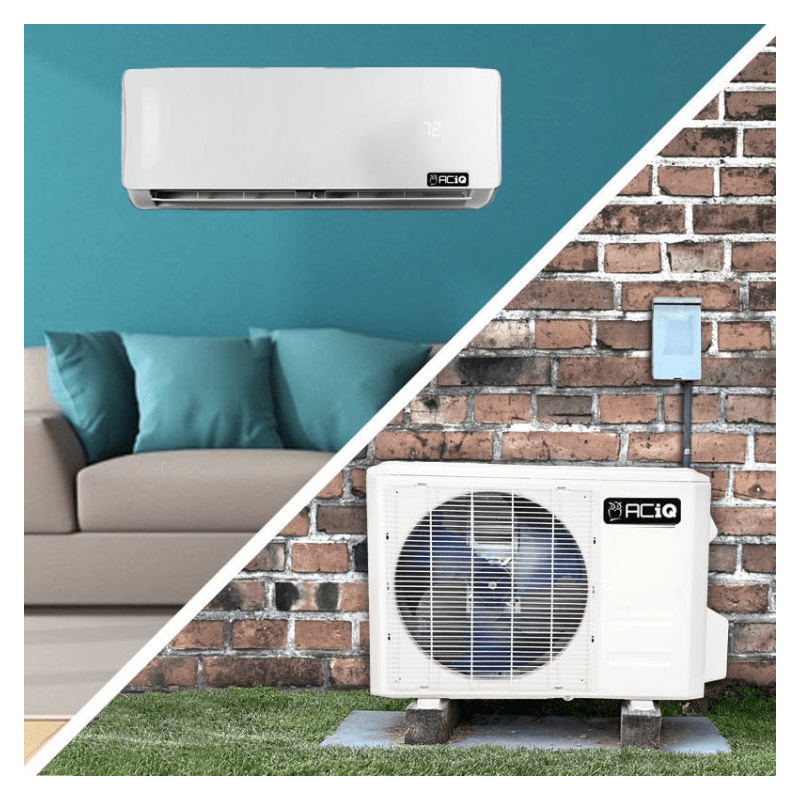

Installed mini split system showcasing ACiQ wall-mount unit inside a living room and outdoor unit on brick wall

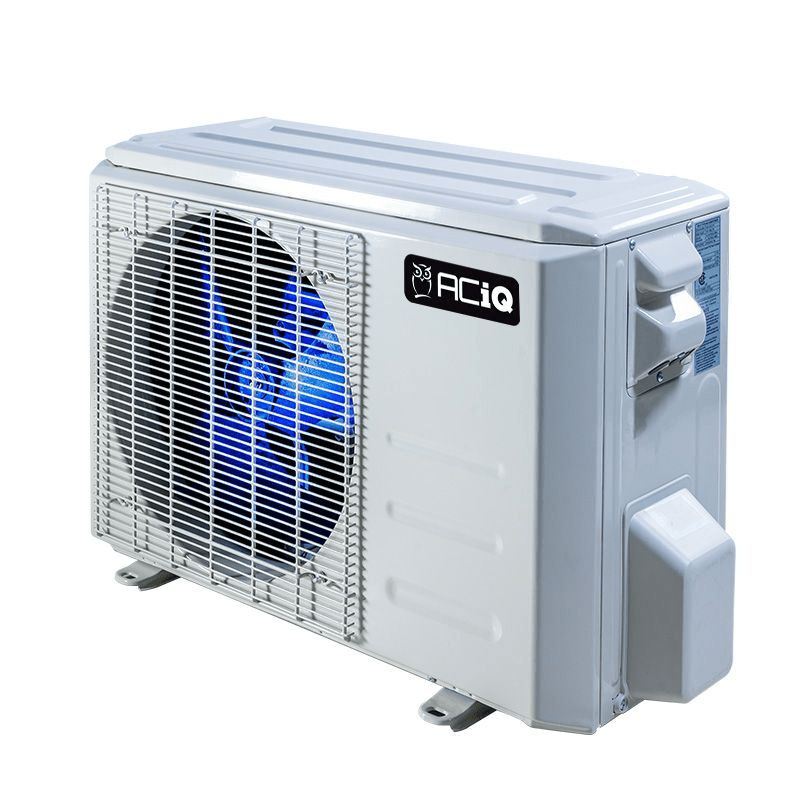

Side view of ACiQ 12000 BTU 23.1 SEER2 outdoor compressor unit with blue blade behind protective grill

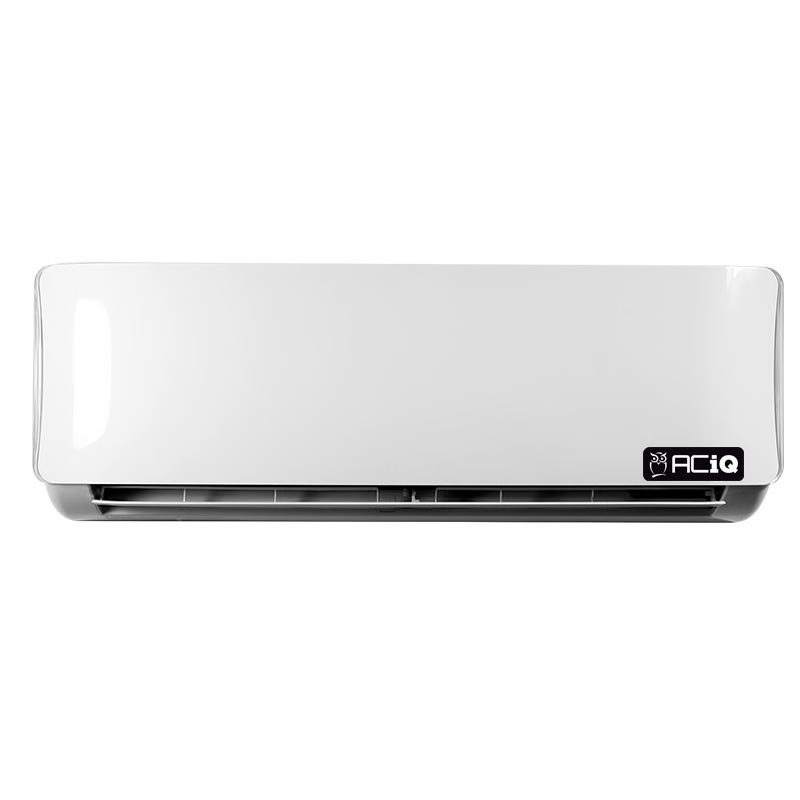

Streamlined indoor wall-mount unit of ACiQ 12000 BTU 23.1 SEER2 mini split system in glossy white finish

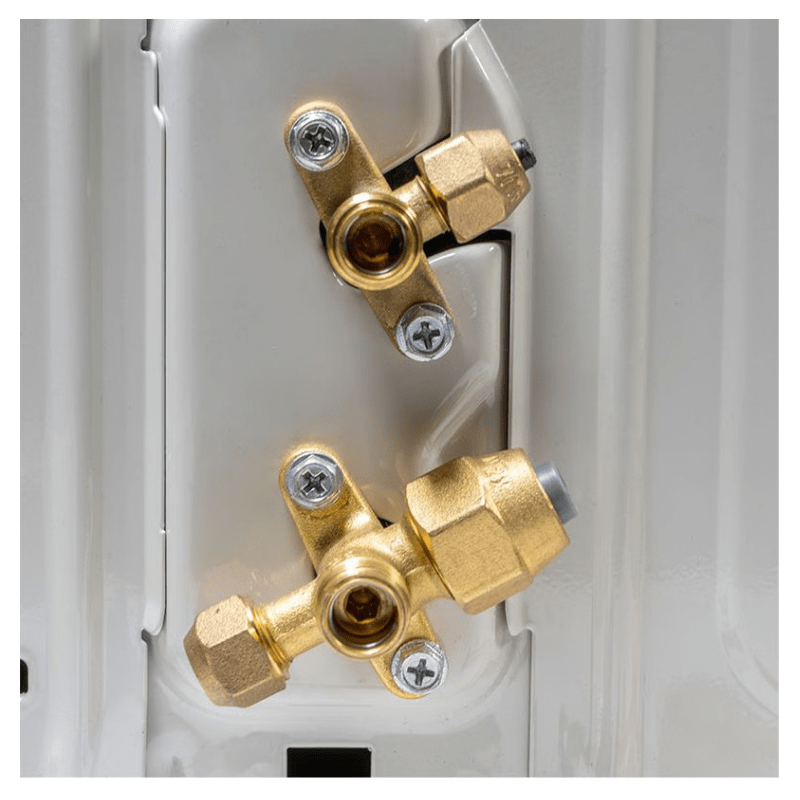

Close-up of refrigerant valves on ACiQ 12000 BTU 23.1 SEER2 outdoor unit showing connection ports

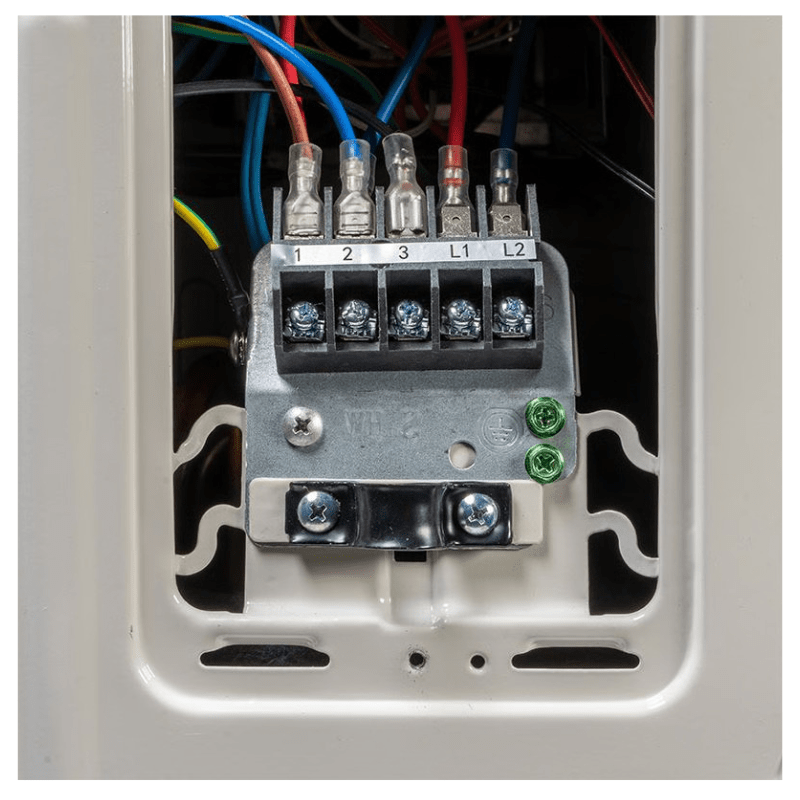

Internal terminal block of ACiQ 12000 BTU 23.1 SEER2 unit featuring electrical wiring and connectors

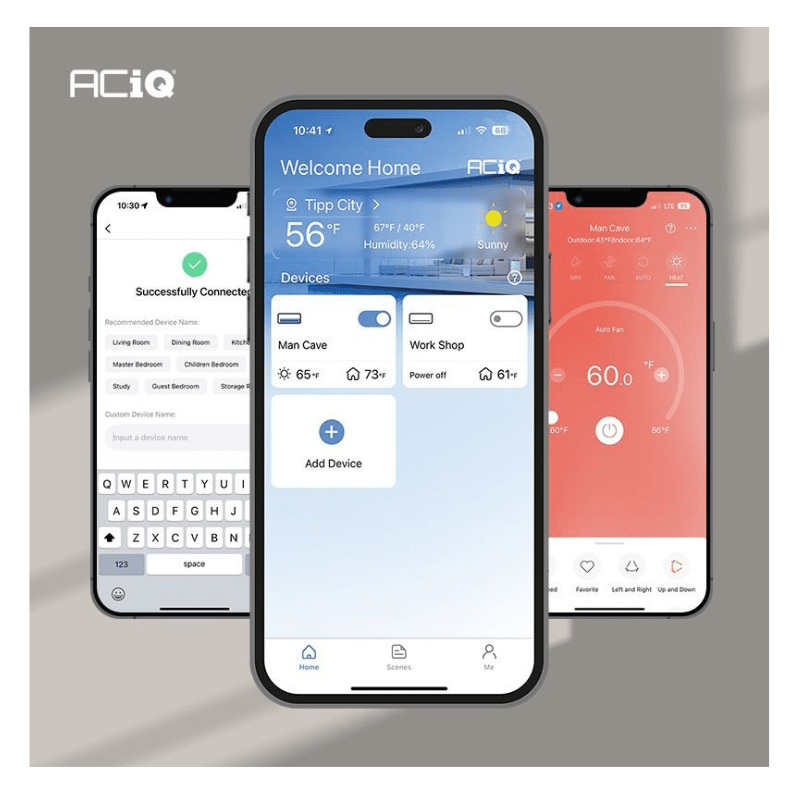

Smartphone interface showing ACiQ smart WiFi app for managing temperature, modes, and device settings

aciq ACIQ-12ZS-HP230C / ACIQ-12WS-HP230C mini split heating and cooling

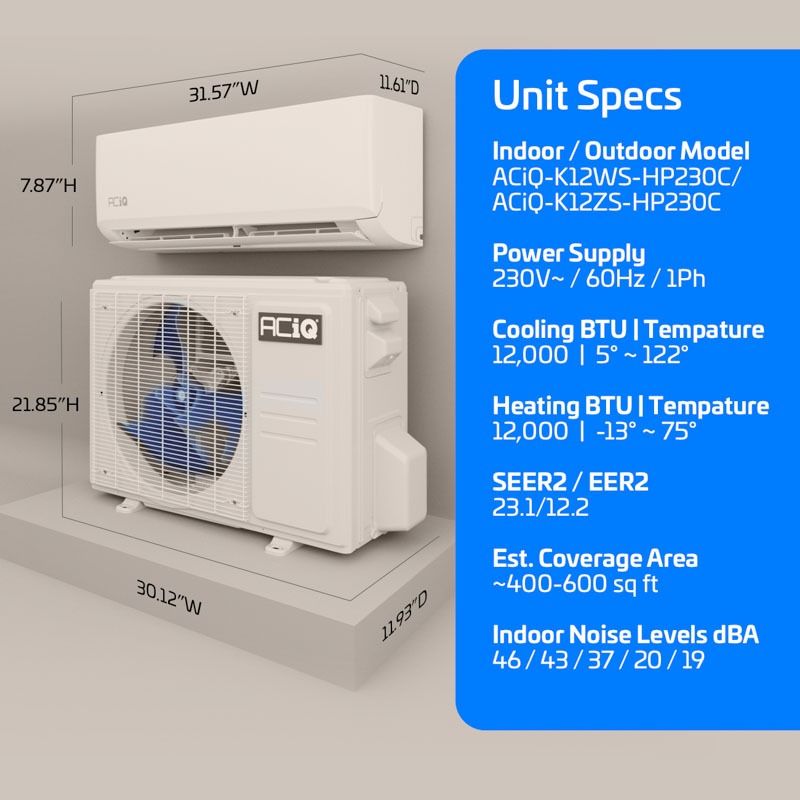

ACIQ-12ZS-HP230C / ACIQ-12WS-HP230C dimension specs

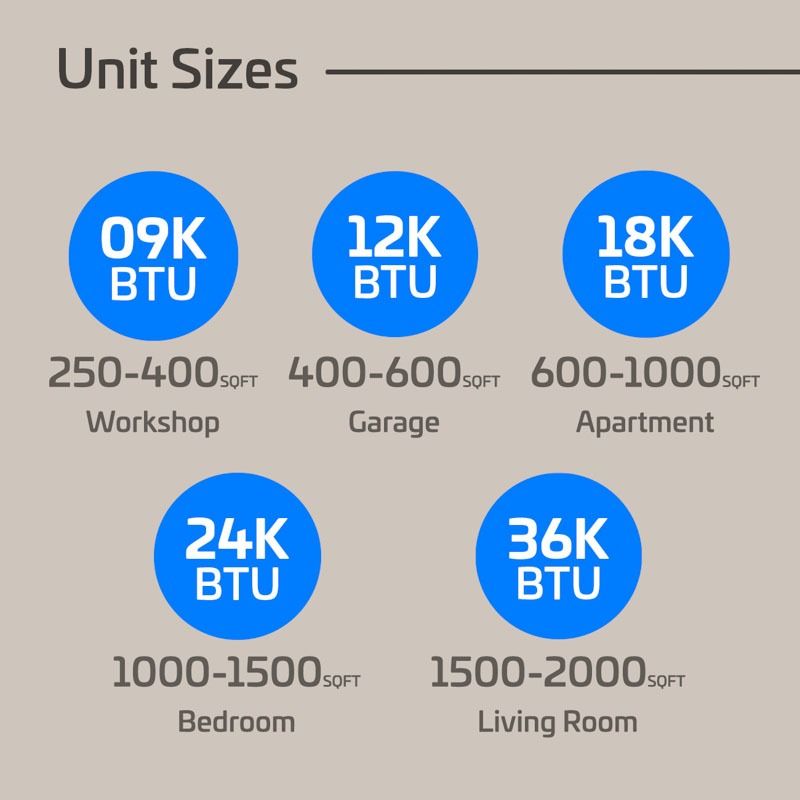

aciq ACIQ-12ZS-HP230C / ACIQ-12WS-HP230C btu sqft sizing diagram

Roll over image to zoom in Click on image to zoom

ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi - R454B | 230V

Name: ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi - R454B | 230V
Brand: ACiQ
SKU: ACIQ-12ZS-HP230C / ACIQ-12WS-HP230C
Price: 1088.99 USD
Availability: InStock

ACiQ SKU: ACIQ-12ZS-HP230C / ACIQ-12WS-HP230C

Price:

$1,088.99

Quantity:

Maximize Comfort and Efficiency with the ACiQ 12,000 BTU Wall Mounted Mini Split System

The ACiQ 12,000 BTU Single Zone Mini Split System delivers intelligent heating and cooling for small to medium spaces with unmatched efficiency. Designed with inverter technology, a 23.1 SEER2 rating, and quiet operation, this system maintains comfort while reducing energy costs. Durable Gold Fin coatings and advanced components ensure long-lasting performance, making it perfect for professional or residential applications.

Perfect For:

Small Office Spaces: Maintain consistent, energy-efficient climate control for employee comfort.
Home Conversions (Basement, Garage, Spare Room): Perfect for newly converted areas needing reliable heating or cooling.
HVAC Contractors & Installers: Pre-engineered for adaptive, high-performance installation and maintenance.
Energy-Conscious Businesses: Reduce operating costs while delivering precise indoor climate control.

What’s Included:

12,000 BTU ACiQ Single Zone Condenser (230V, R454B)
12,000 BTU ACiQ Single Zone Air Handler with WiFi (230V, R454B)

Why Choose the ACiQ 12,000 BTU Mini Split System?

Adaptive Inverter Technology: Automatically adjusts output for maximum efficiency and comfort.
Durable Gold Fin Coating: Protects condenser coils against corrosion, extending lifespan.
High SEER2 Efficiency (23.1): Reduces energy costs without sacrificing performance.
WiFi Smart Control Ready: Compatible with iOS, Android, Alexa, Google Home, and NetHome Plus app for total remote management.
Quiet & Reliable Operation: Indoor and outdoor units engineered for whisper-quiet performance.

ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi Features

Inverter Technology: Adapts heating and cooling power to maintain precise temperature while minimizing energy use.
High SEER2 Efficiency (23.1): Optimized energy use for small to medium spaces, delivering cost savings over time.
Wide Operating Range: Efficient cooling from 5°F to 122°F and heating from 5°F to 86°F, ideal for variable climates.
Quiet Performance: Ensures minimal noise disruption while maintaining steady temperature.
Smart LED Display & Remote: Shows temperature, mode, and error codes; includes intuitive remote with LCD display.
WiFi Compatibility: Full remote control through NetHome Plus app, Alexa, or Google Assistant.
Self-Cleaning Function: Uses airflow to clean air handler components, reducing maintenance.
Wall-Mounted Design: Easy installation and optimal air distribution; vented at top for return air and bottom for cooled/heated air.
Smartphone App Control: Manage your system from anywhere for convenience and efficiency.

ACIQ-12ZS-HP230C / ACIQ-12WS-HP230C Specs

Brand/Manufacturer	12,000 BTU ACiQ Single Zone Condenser - 230V	12,000 BTU ACiQ Single Zone Air Handler w/ WiFi- 230V
SKU	ACIQ-12ZS-HP230C	ACIQ-12WS-HP230C
Refrigerant Charge	310	310
Weight	67.68	24.25
Manufacturer	ACiQ	ACiQ
HSPF2	11.5	11.5
Cooling BTU	12,000 BTU	12,000 BTU
Heating BTU	12,000 BTU	12,000 BTU
Maximum CFM	N/A	382.6
Decibel Level (dBA)	54.0	54.0
Electric Heat	Heat Pump	Heat Pump
Energy Star	Yes	Yes
Refrigerant	R454B	R454B
SEER2	23	23
Compressor Type	Rotary	Rotary
Liquid Line	1/4"	1/4"
Suction Line	3/8"	3/8"
Electrical	208/230V 1 Phase 60 Hz	208/230V 1 Phase 60 Hz
Max Breaker Size	15 Amps	15 Amps
Min. Breaker Size	12.0 Amps	12.0 Amps
Tonnage	1.0 Ton	1.0 Ton
BTU/Tonnage	12,000 BTU/1 Ton	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted	Wall Mounted
Zone Compatibility	Single Zone	Single Zone
Height	11.61"	11.61"
Width	31.57"	31.57"
Depth	7.87"	7.87"
Warranty	12 year compressor, 7 year parts with online registration	12 year compressor, 7 year parts with online registration

ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System Resources

ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi Installation and Owner's Manual

ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi Service Manual

ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi Remote Control Manual

ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi Submittal Data Sheet

ACiQ 12,000 BTU 23.1 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi AHRI Certificate

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
ACiQ Essentials: 6-year compressor, 4-year parts
A.C. and Heat Pump Condenser: 10-year compressor and coil
Furnace: Lifetime warranty for original owner
Air Handler and Coil: 10-year parts for original owner
Residential Packaged Units: Lifetime heat exchanger for original owner
PTAC: 7-year compressor, 1-year parts
Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
Hybrid Water Heater: 12-year tank, 10-year parts
Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

System Diagnosis
Method of Resolution
Warranty Acceptance
Faulty Parts Inspected
Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
