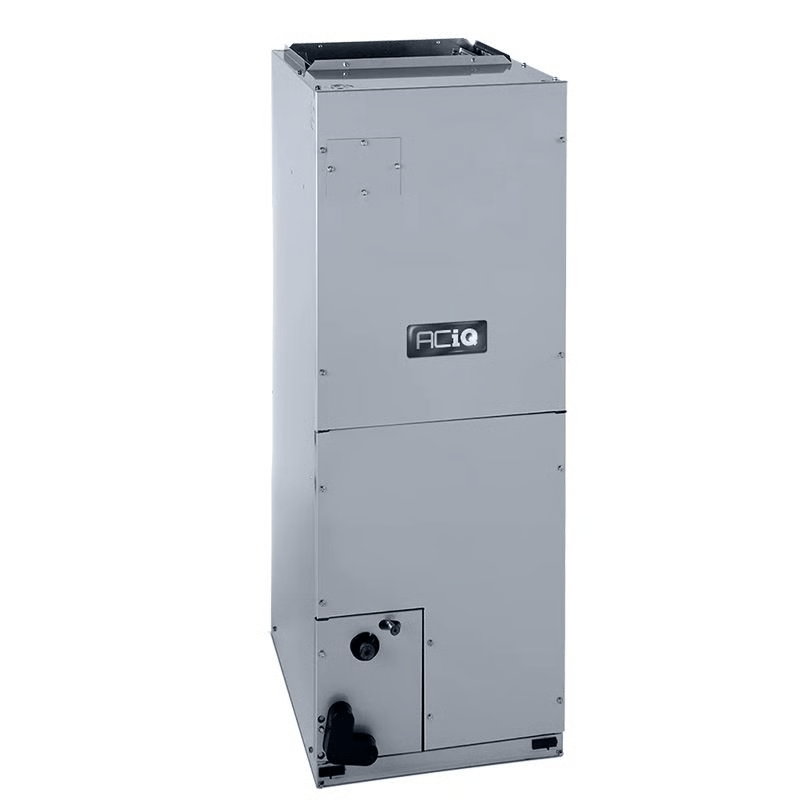

Front of ACiQ 1 Ton Central Ducted Air Handler

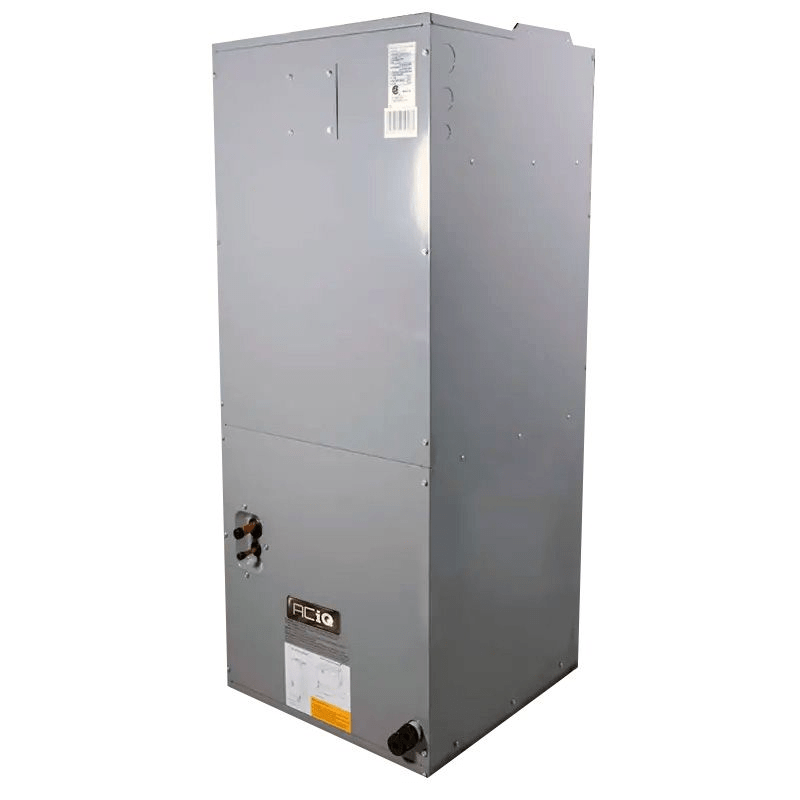

Side of ACiQ 1 Ton Central Ducted Air Handler

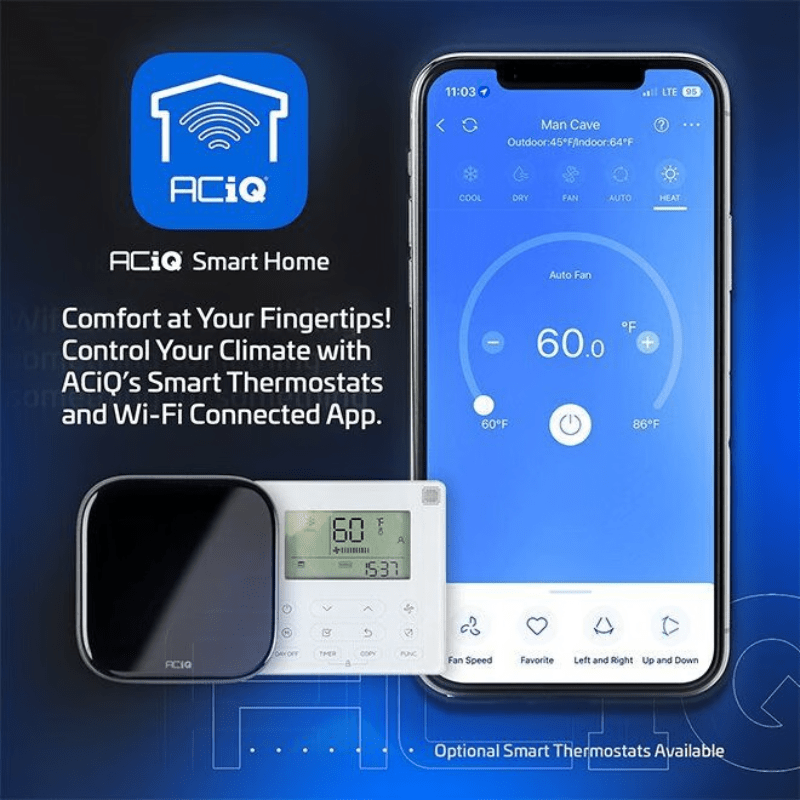

ACiQ 1 Ton Central Ducted Air Handler Smart Home App

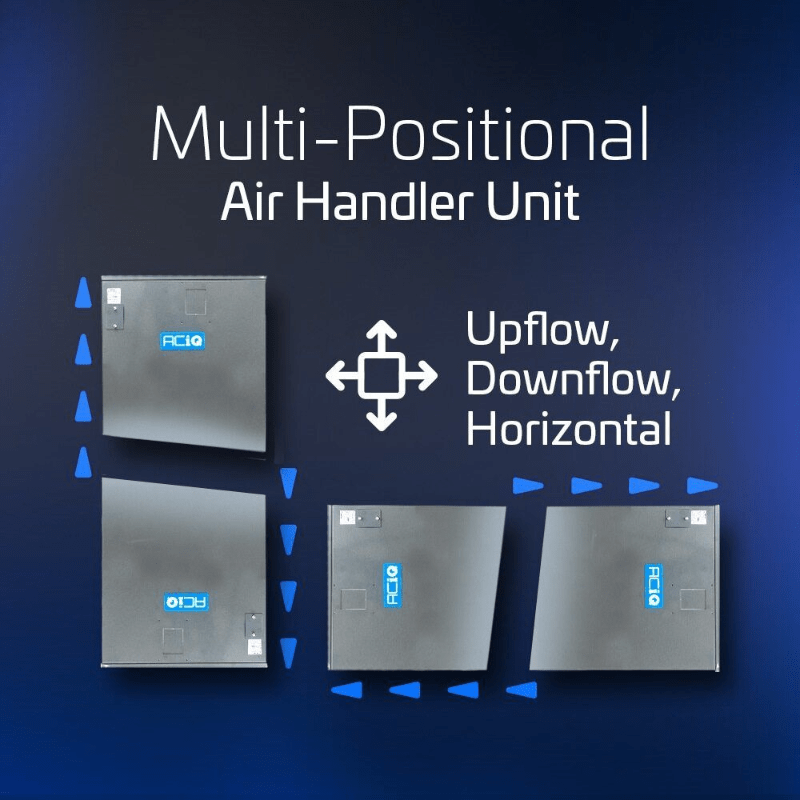

ACiQ 1 Ton Central Ducted Air Handler Configuration Graphics
Roll over image to zoom in Click on image to zoom
Front of ACiQ 1 Ton Central Ducted Air Handler Side of ACiQ 1 Ton Central Ducted Air Handler ACiQ 1 Ton Central Ducted Air Handler Smart Home AppACiQ 1 Ton Central Ducted Air Handler Configuration Graphics

ACiQ 1 Ton Central Ducted Air Handler - R454B

ACiQ SKU: ACIQ-12-AHD
Price:
$1,092.00

Description

Smart Comfort Starts Here: ACiQ 1 Ton Central Ducted Air Handler with Variable Speed & R454B Compatibility

The ACiQ-12-AHD 1 Ton Central Ducted Air Handler is engineered to deliver precise airflow and enhanced comfort across ducted systems. Equipped with a variable speed DC blower and intelligent communicating technology, it synchronizes perfectly with an inverter condenser to optimize BTU output. Ideal for professional installers and property developers, this air handler offers multi-positional flexibility, seamless ductwork integration, and is fully compatible with R454B refrigerant, making it a future-ready solution for energy-efficient HVAC systems.



Ideal For:

✔ Residential HVAC Upgrades – Offers enhanced efficiency, quiet operation, and smart control compatibility for homeowners switching to ducted inverter systems.

✔ New Construction Projects – A versatile air handler that meets future refrigerant regulations and fits flexible installation layouts.

✔ Light Commercial Spaces – Perfect for small offices or storefronts that need reliable, variable airflow and temperature control via standard duct systems.

✔ Mobile or Modular Homes – Multi-positional design fits limited space installs without sacrificing performance.



Certifications & Safety Features:

  • Thermostat Compatible: Works with any 24V thermostat that supports 2-stage heating
  • Integrated Fault Detection: Built-in control board displays fault codes for easy maintenance and diagnostics
  • Multi-positional Installation: Supports upflow, downflow, and horizontal (left/right) configurations
  • R454B Refrigerant Ready: Compliant with next-gen refrigerant standards for reduced environmental impact
  • Safety Compliant: Built with durable housing and serviceable panels to meet HVAC safety norms

ACIQ-12-AHD Features

  • Variable Speed DC Blower: Delivers consistent airflow while reducing energy usage and improving humidity control
  • Smart Communicating System: Works with inverter condensers to self-adjust performance for comfort and efficiency
  • Multi-positional Flexibility: Designed for versatile installs—perfect for attics, closets, basements, or tight spaces
  • Ductwork Compatible: Seamlessly integrates into existing central duct systems for quick retrofits
  • Quiet Performance: Minimizes operational noise, ensuring a more comfortable indoor experience
  • Easy Maintenance: Intelligent control board with fault code display allows for faster troubleshooting and servicing
  • Electric Heat Compatible: Optional heat kit provides backup warmth on extreme cold days
  • Efficient Air Distribution: Effectively circulates conditioned air to all zones in your building or home

ACiQ 1 Ton Central Ducted Air Handler Specs

SKU ACiQ-12-AHD
Weight (in lbs) 126.76
Brand/Manufacturer ACiQ
Replaces ACiQ-12-AHB
Cooling BTU 12,000 BTU
Maximum CFM 618
Decibel Level (dBA) Up to 44 Decibels
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 8 Kilowatts, 10 Kilowatts
Configuration Multi-Positional
Refrigerant R454B
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 5.5 Amps / 4.0 Amps
Tonnage 1.0 Ton
BTU/Tonnage 12,000 BTU/1 Ton
Mini Split Type Multi-Positional
Zone Compatibility Single Zone
Connection Flared
Height 45"
Width 17.5"
Depth 16.3"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
