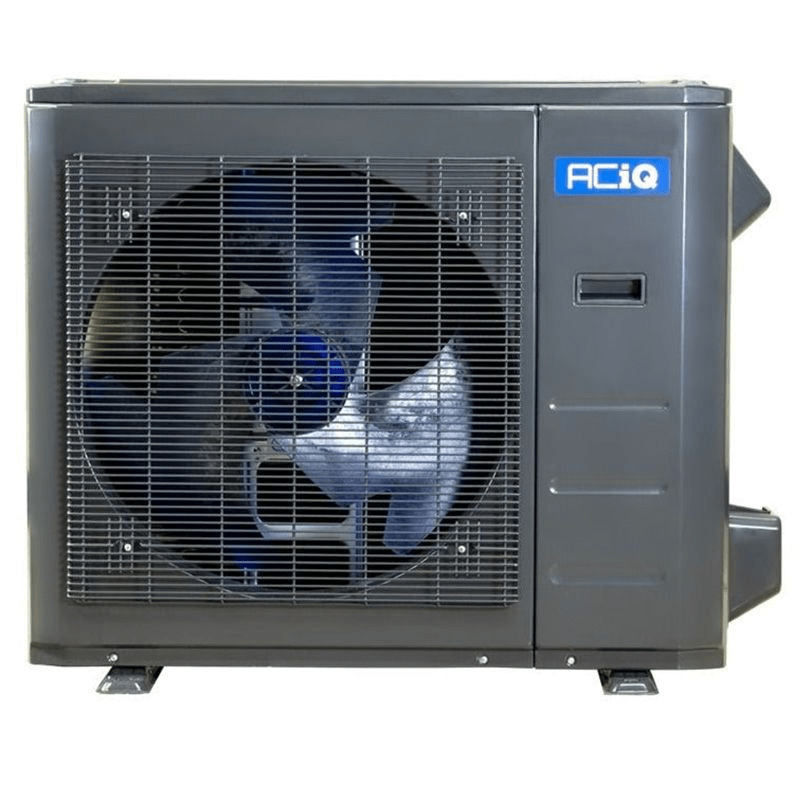

ACiQ 1 Ton 18.8 SEER2 High Efficiency Central Heat Pump condenser r454b EHPD series
Roll over image to zoom in Click on image to zoom
ACiQ 1 Ton 18.8 SEER2 High Efficiency Central Heat Pump condenser r454b EHPD series How ACiQ Condensers Clean Themselves Automatically Self-Cleaning HVAC Technology

ACiQ 1 Ton 18.8 SEER2 High Efficiency Central Heat Pump | Inverter - R454B

ACiQ SKU: ACIQ-12-EHPD
Price:
$2,299.00

Description

Cut Energy Costs with the High-Efficiency ACiQ-12-EHPD Heat Pump System!

The ACiQ-12-EHPD Heat Pump System is engineered to deliver superior heating and cooling performance while maximizing energy efficiency. With a high SEER2 rating of 18.8 and an EER2 of 12.5, this system is perfect for businesses looking to reduce energy consumption and lower operational costs. Designed for easy installation and maintenance, the system ensures reliable performance across a wide range of temperatures, making it ideal for a variety of commercial applications. Manufactured with advanced components, this system is built to last and deliver exceptional comfort.



Ideal For:

✔ Commercial Offices & Buildings – Provides consistent climate control for large spaces while cutting down on energy bills with its 21.0 SEER2 rating.

✔ Retail Spaces – Ideal for maintaining a comfortable shopping environment, ensuring optimal cooling during hot months and heating during the winter.

✔ Restaurants & Hospitality – Keeps dining areas comfortable for guests all year round, enhancing the guest experience while minimizing operational costs.

✔ Warehouse & Industrial Facilities – Designed to function in a wide range of temperatures, offering efficient cooling and heating solutions for industrial spaces.

✔ Educational Institutions – Perfect for large classrooms and lecture halls that require a reliable, energy-efficient HVAC solution.



Control Options:

  • Two-way communication wired controller
  • Optional WiFi-enabled wired controller
  • Wireless remote control
  • Third-party 24V thermostat



Certifications & Safety Features:

  • High Efficiency: Achieves up to 18.8 SEER2, 12.5 EER2, and 10 HSPF2 ratings.
  • Safety Features: Includes a chassis heater and crankcase heater to ensure safe and stable operation during low temperatures.
  • Compliance: Built to meet stringent performance and safety standards, ensuring a reliable and compliant HVAC solution for commercial use.
  • Warranty: Standard 7-year parts and 12-year compressor manufacturer warranty to provide peace of mind on your investment.

ACiQ ACIQ-12-EHPD Features

  • Advanced Inverter Technology: Utilizes a variable BTU inverter to automatically adjust compressor speed and output (up to 12,000 BTU) based on heating and cooling demand, ensuring optimal efficiency and comfort.
  • Learning Condenser: Equipped with sensors to monitor indoor/outdoor air temperature, duct pressure, refrigerant temperature, and system performance, optimizing operations through a learning mode for maximum efficiency.
  • Adaptive Sizing: Self-adjusting inverter design allows sizing for heating needs without compromising cooling performance, preventing short cycling and excess humidity in summer.
  • High-Efficiency Operation: Achieves an 18.8 SEER2 rating, reducing energy costs while providing reliable performance across diverse climates.
  • Wide Operating Range: Efficient cooling from -13°F to 122°F outdoor temperatures. Reliable heating from -13°F to 75°F outdoor temperatures.
  • Eco-Friendly Refrigerant: Uses R454B refrigerant for environmentally responsible operation.
  • Seamless Ducted Integration: Compatible with existing ductwork, pair with the ACIQ-12-AHD air handler for streamlined installation.
  • Quiet Performance: Operates quietly, even under high workloads, for minimal disruption.
  • Durable Construction: Features a gold fin condenser coil coating for enhanced longevity and corrosion resistance.
  • Smart System Design: Incorporates soft startups to maximize efficiency and minimize energy waste.
  • Low Ambient Capability: Supports efficient heating and cooling in extreme conditions, ideal for year-round comfort.
  • Superior Quality: Built with state-of-the-art manufacturing for quiet, reliable, and long-lasting performance.
  • Extended Warranty: Offers 7-year parts and 12-year compressor warranty upon registration at ACiQ.com.
  • Cost Savings: Variable inverter twin rotary compressor reduces wear, enhances performance, and lowers energy bills compared to traditional heat pumps.

ACiQ 1 Ton 18.8 SEER2 High Efficiency Central Heat Pump Specs

Rated Cooling Capacity: 12,000 Btu/hr
Rated Heating Capacity 13,000 Btu/hr
Energy Efficiency Ratio (EER2) 12.5
Seasonal Energy Efficiency Ratio (SEER2) 18.8
Heating Seasonal Performance Factor (HSPF2) 10.0
Refrigerant R454B
Max Piping Length 98.4 ft (30 m)
Max Height Difference 65.6 ft (20 m)
Indoor Unit Dimensions 17.52 x 21.02 x 45.00 in (445 x 534 x 1143 mm)
Outdoor Unit Dimensions 31.69 x 12.99 x 21.81 in (805 x 330 x 554 mm)
Indoor Noise Level 33 dBA (Silence Mode)
Outdoor Noise Level 55 dBA
Compressor Type Rotary
Power Supply 208/230V, 60Hz, 1Ph (Outdoor), 115V/208V/230V, 60Hz, 1Ph (Indoor)
Max Refrigerant Pre-charge 51.15 oz (1.45 kg)

ACiQ-12-EHPD Specs Sheet

Looking for detailed information on ACiQ ACiQ-12-EHPD? Then check out this Specs Sheet below.

ACiQ 1 Ton 18.8 SEER2 High Efficiency Central Heat Pump Specs Sheet

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.
