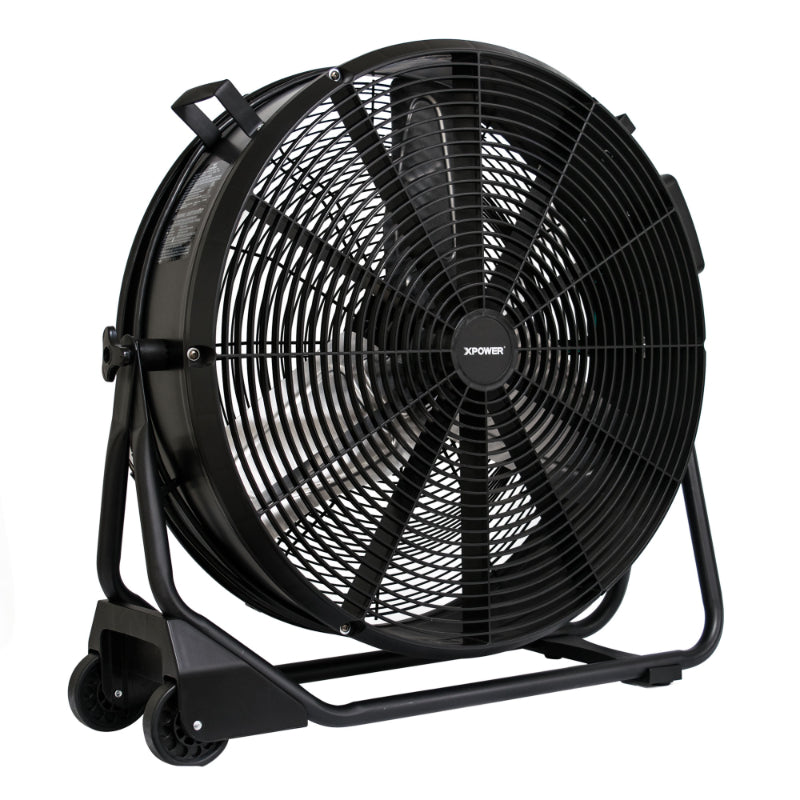

fd-630d drum fan main image

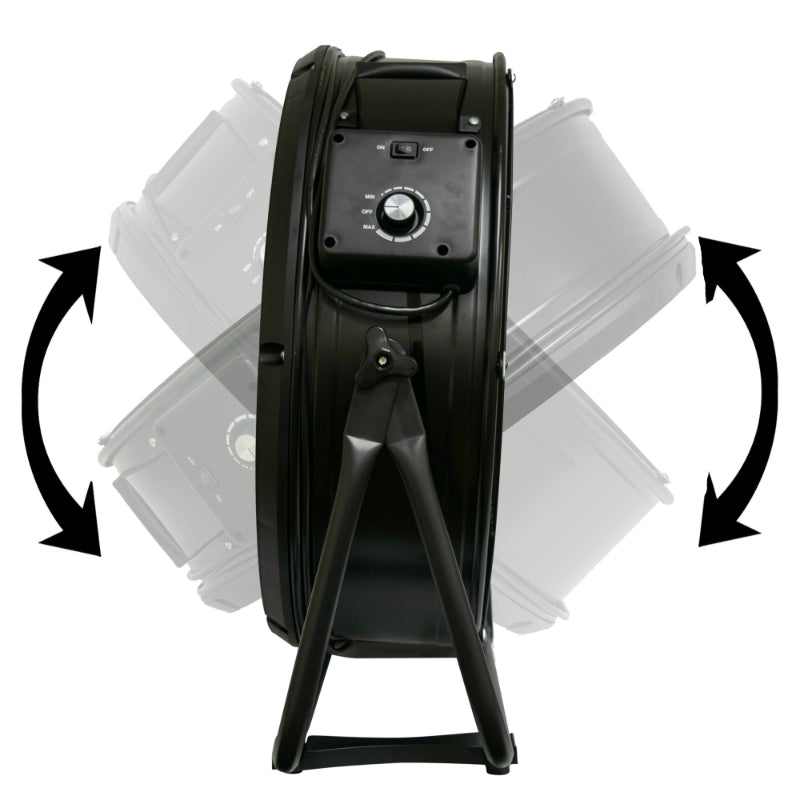

fd-630d drum fan 360 degree rotation

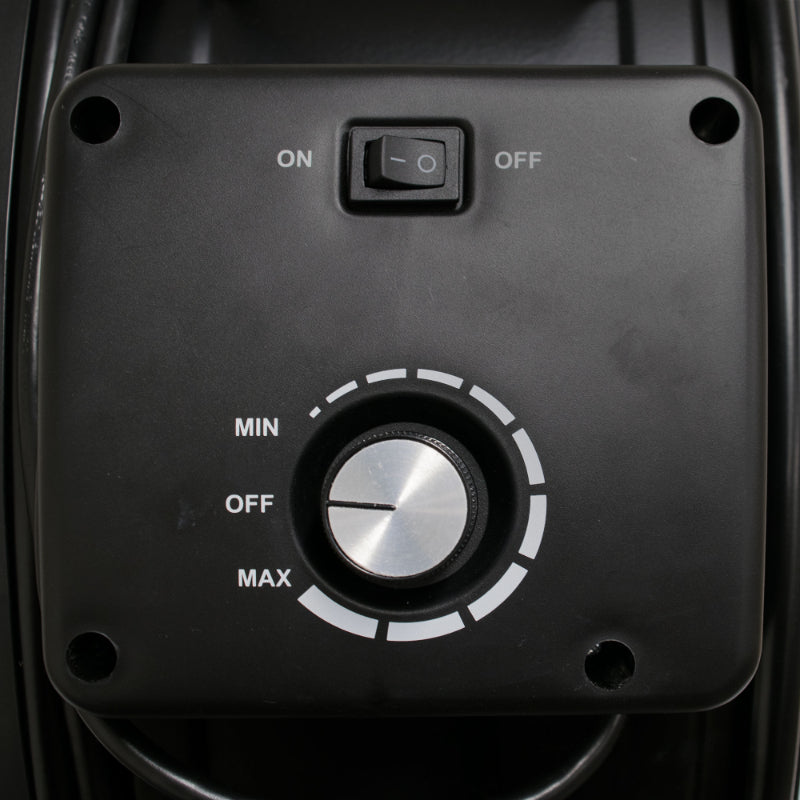

fd-630d drum fan control panel

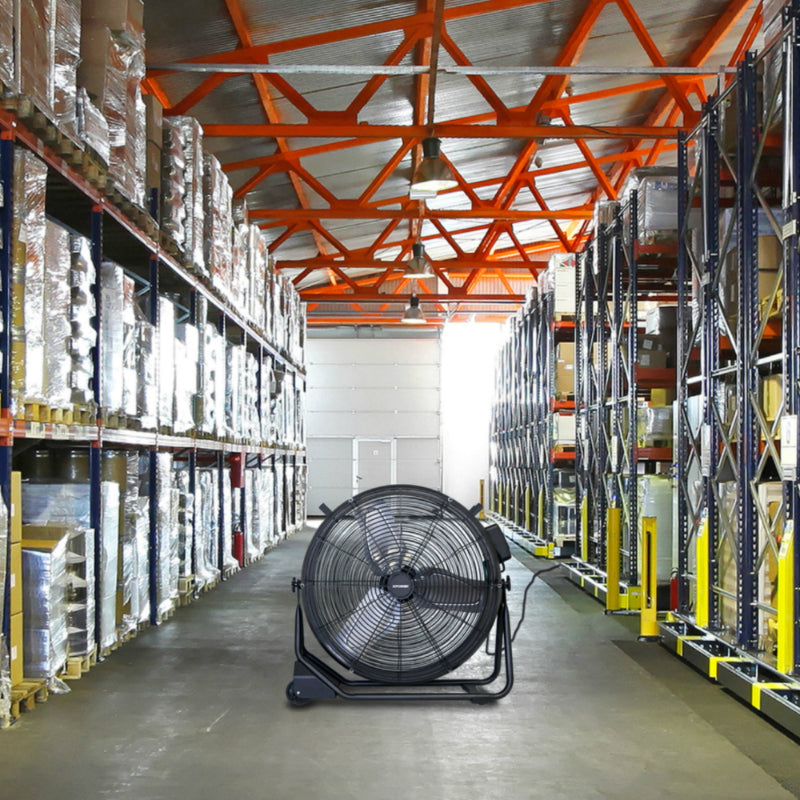

fd-630d drum fan application 1

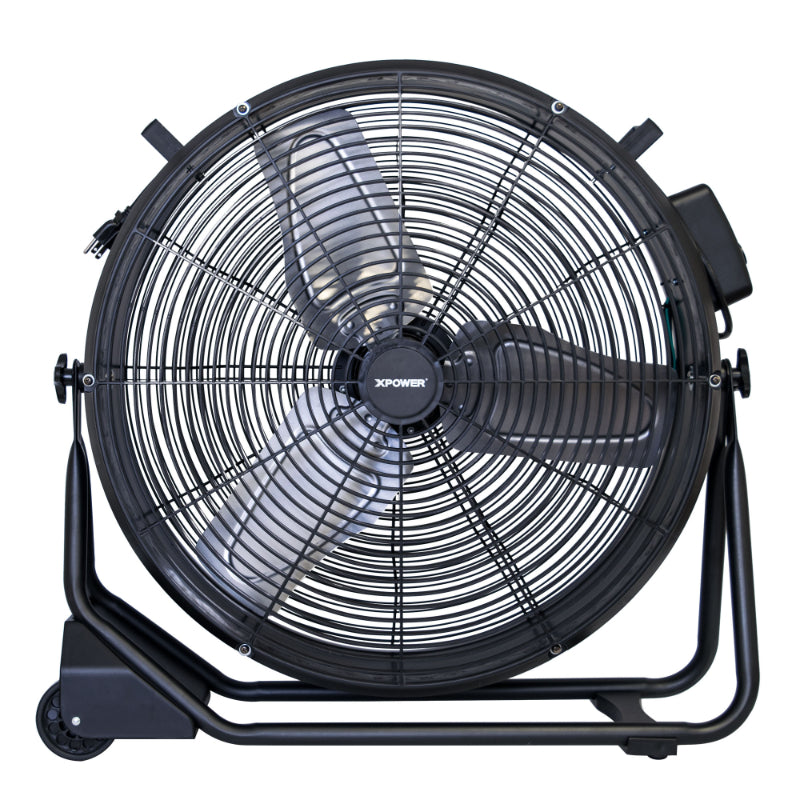

fd-630d drum fan front view

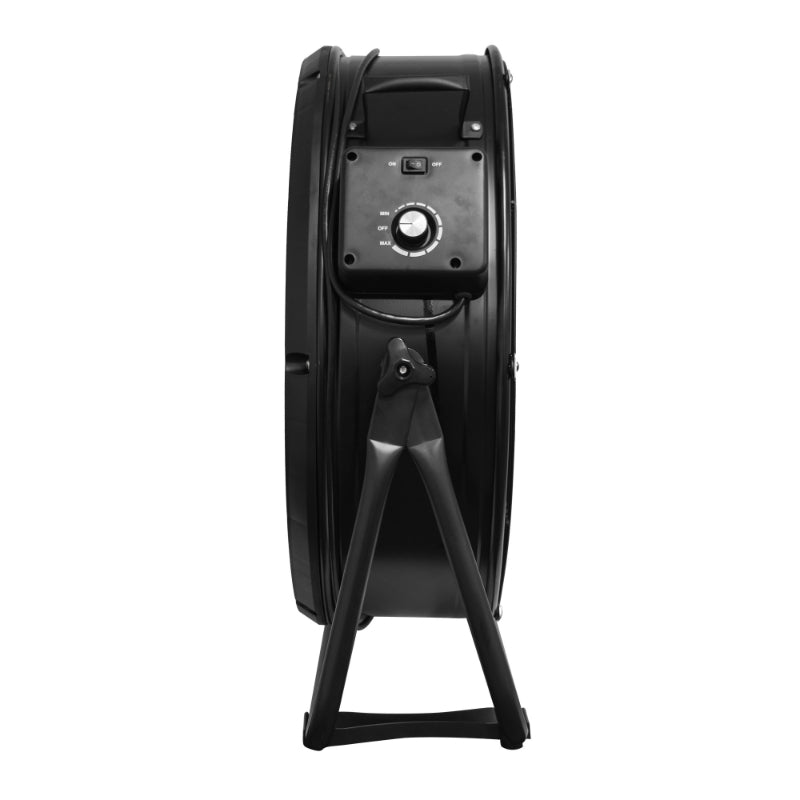

fd-630d drum fan left side view

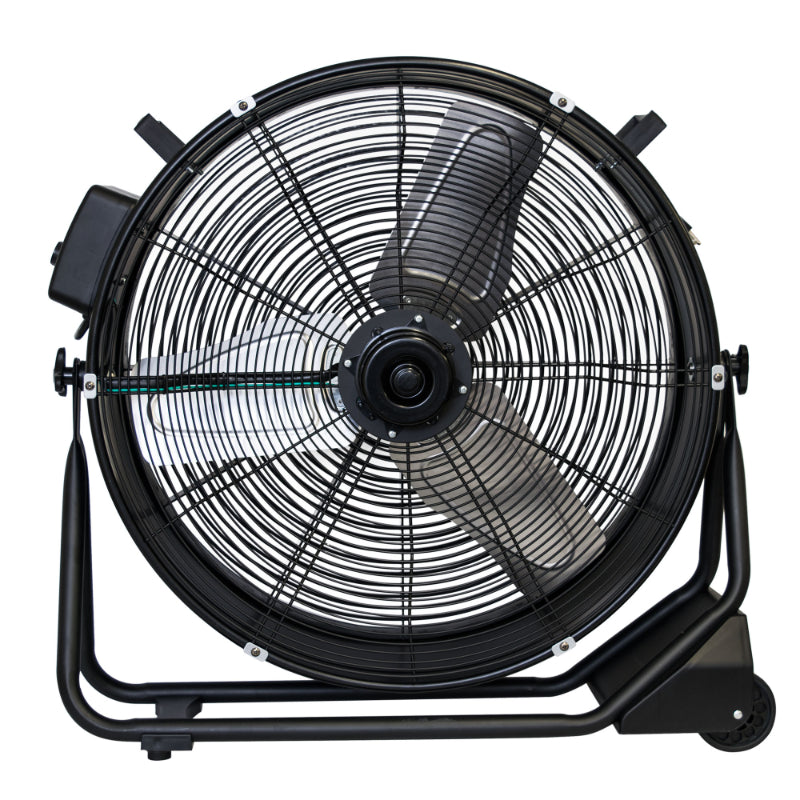

fd-630d drum fan back view

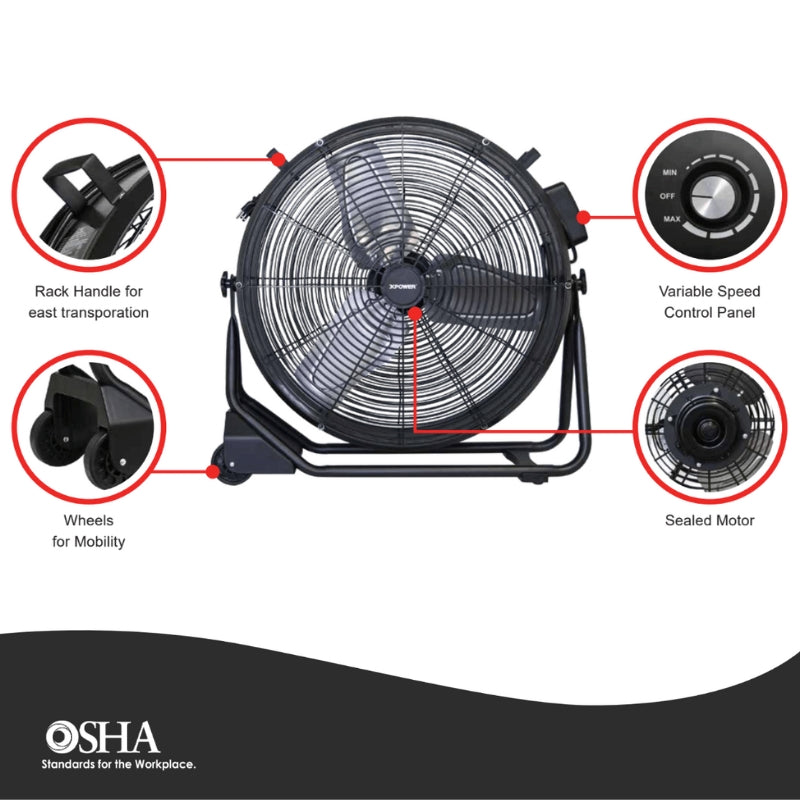

XPOWER FD-630D Brushless DC Motor Drum Fan Specs
Roll over image to zoom in Click on image to zoom
fd-630d drum fan main imagefd-630d drum fan 360 degree rotationfd-630d drum fan control panelfd-630d drum fan application 1fd-630d drum fan front viewfd-630d drum fan left side viewfd-630d drum fan back viewXPOWER FD-630D Brushless DC Motor Drum Fan Specs

XPOWER FD-630D 1/2 HP 5800 CFM 1.8 Amps Variable Speed Enclosed Brushless DC Motor High Velocity 24” Drum Fan

XPOWER SKU: FD-630D
Price:
$399.00

Description

XPOWER 1/2 HP, 5800 CFM, 1.8 Amps, Variable Speed 24" Drum Fan

XPOWER’s new FD-630D Drum Fan is a perfect candidate for your ventilation needs in warehouse, barn, garage, or workshop settings. The FD-630D features a 1/2 HP brushless DC motor rated at 5800 CFM while only drawing a maximum of 1.8 Amps. Variable speed control allows you to set the airflow necessary for your application.

A durable rack equipped with easy-to-roll wheels maximize portability while offering a wide range of operating positions. It is ETL/CETL safety certified and meets OSHA requirements.

The FD-630D is ready for your ventilating needs no matter how large or small the task.


XPOWER FD-630D Features

  • Provides powerful, large-scale air movement to industrial spaces such as factories, gyms, auditoriums, and schools
  • A powerful 1/2 HP enclosed brushless DC motor runs on less power and requires less maintenance compared to other motors
  • Designed for more regular use and applications to meet the needs of DIYers and professionals
  • Features an enclosed motor to protect it from dust, debris, contaminants, and water damage
  • Maximized energy efficiency with a rated 5800 CFM while only drawing 1.8 Amps
  • Rack/stand included allowing a wide range of operating for multiple positions
  • Variable speed control for efficient ventilation and climate control
  • Aerodynamically balanced blades allow for quiet operation
  • Rugged construction and materials for long-lasting use
  • Smooth-rolling rubber wheels for easy portability
  • Fully assembled, low maintenance, and easy operation
  • ETL/CETL safety certified and meets OSHA safety requirements

What's Included

  • XPOWER FD-630D Brushless DC Motor High Velocity 24” Drum Fan x 1
  • Owner’s Manual x 1

XPOWER FD-630D 1/2 HP 5800 CFM Variable Speed High Velocity 24” Drum Fan Video

XPOWER FD-630D 1/2 HP 5800 CFM Variable Speed High Velocity 24” Drum Fan

XPOWER FD-630D Specs

Manufacturer XPOWER Manufacture, Inc.
Brand XPOWER
Model FD-630D
Volts / Cycle 115V / 60 Hz
Motor 1/2 HP
Power 1.8 A
Rated Airflow 5800 CFM
Speeds Variable Speed Control
RPM 200~1200
Unit Weight (lbs) 29.3 lbs.
Unit Dimensions (L x W x H) 30.1″ x 9.3″ x 29.0″
Box Weight (lbs) 34.8 lbs.
Box Dimensions (L x W x H) 32.40″ x 11.80″ x 33.30″
Cord Length 20 ft
Housing Metal
Operating Positions 200°
Stackable No
Daisy Chain No
Safety Certifications ETL / CETL
Warranty 1 Year Limited
UPC 848025041987

XPOWER FD-630D Owner's Manual

Looking for detailed information on the XPOWER FD-630D? Then check out the owner's manual below.

XPOWER FD-630D Drum Fan Owner

XPOWER Manufacturer's Warranty

Equipment purchased from authorized U.S. distributors is covered for defects in materials and workmanship for 1 year from the original purchase date under normal use.

Coverage includes parts and labor, plus one-way shipping within Continental U.S.

What's Covered:

  • All internal parts and labor
  • Manufacturing defects
  • Material defects

What's Not Covered:

  • Home-use pet dryers
  • Individual parts and accessories
  • Refurbished items
  • Normal wear and tear (power cords, fuses, brushes, filters, etc.)
  • Damage from misuse or lack of maintenance
  • Unauthorized repairs
  • Shipping damage
  • External damage (weather, power surges)
  • Use of non-XPOWER parts

Note: Motor brushes on Pressurized Wall Cavity Drying (PDS) equipment and pet dryers are only covered for first use.

Warranty claims require proof of purchase and are non-transferable. For service, contact XPOWER at 855-855-8868 or support@XPOWER.com.
