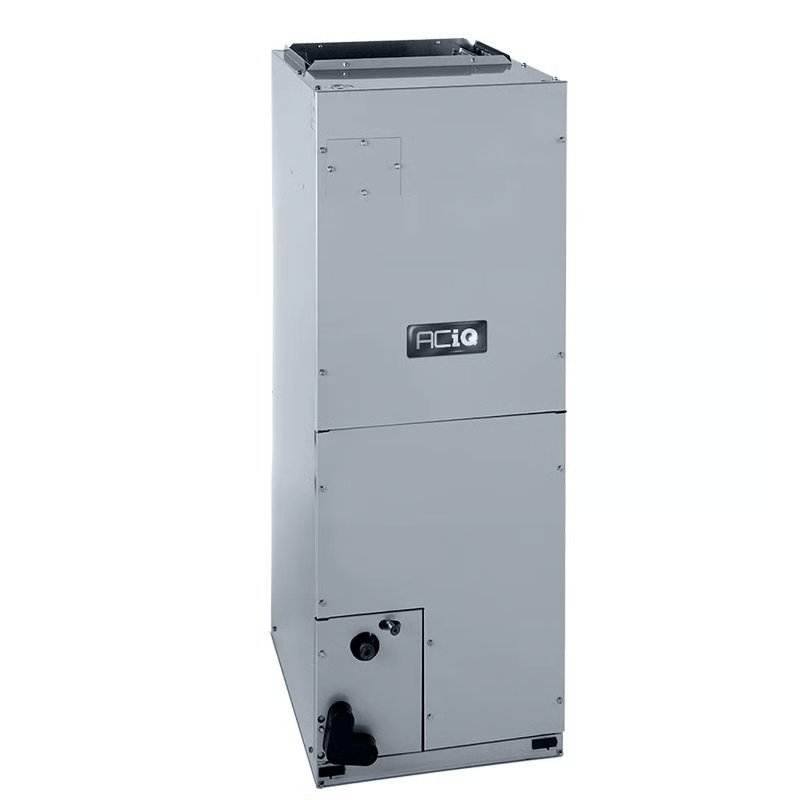

ACiQ 3 Ton Central Air Handler - R410A (ACIQ-36-AHB)
Roll over image to zoom in Click on image to zoom
ACiQ 3 Ton Central Air Handler - R410A (ACIQ-36-AHB)

ACiQ 3 Ton Central Air Handler - R410A (ACIQ-36-AHB)

ACiQ SKU: ACIQ-36-AHB
Price:
$1,319.00

Description

Maximize Efficiency with the ACiQ 3 Ton Central Air Handler

The ACiQ-36-AHB is designed to deliver superior comfort and efficiency with its variable DC blower and communicating technology. By working seamlessly with the inverter condenser and included smart thermostat, this air handler automatically adjusts BTU output to maintain precise comfort while reducing energy use. Its flexible installation options make it suitable for a wide range of applications, from residential homes to manufactured and mobile housing.



Ideal For

  • Residential Homes – Distributes conditioned air evenly through existing ductwork for year-round comfort.
  • Manufactured & Mobile Homes – Approved for compact housing applications where reliable performance is essential.
  • Energy-Conscious Users – Smart communication between thermostat and condenser ensures efficient operation and lower utility bills.
  • HVAC Professionals – Simplifies installation with multiple airflow configurations (upflow, downflow, horizontal left/right).



Why Should You Invest in the ACiQ 3 Ton Central Air Handler?

  • Maximized Efficiency: Variable DC blower adjusts air output to match demand, reducing energy consumption.
  • Smart Communication: Syncs with the inverter condenser and smart thermostat for optimized system performance.
  • Flexible Installation: Suitable for multiple configurations (upflow, downflow, horizontal left or right).
  • Long-Term Savings: Helps lower utility bills by enhancing system efficiency and providing precise climate control.



Certifications & Safety Features

  • Manufactured Home Approved – Certified for use in mobile and manufactured housing applications.
  • Communicating Technology – Ensures compatibility with inverter condensers for optimized performance.
  • Built with state-of-the-art construction for durability and long service life.

ACiQ 3 Ton Central Air Handler - R410A Features

  • 3 Ton / 36,000 BTU Capacity → Provides efficient airflow distribution for mid-sized residential or light commercial spaces.
  • Variable DC Blower → Adjusts automatically for precise comfort while reducing energy consumption.
  • Smart Thermostat Integration → Communicates with outdoor inverter condenser for synchronized performance.
  • Flexible Installation → Compatible with upflow, downflow, horizontal left, or horizontal right configurations.
  • Versatile Control Options → Comes with a wired smart thermostat, but also works with any 24V thermostat.
  • Efficient Air Distribution → Ensures even heating and cooling across all duct-connected spaces.

ACIQ-36-AHB Specs

Brand/Manufacturer ACiQ
SKU ACIQ-36-AHB
AHRI Certificate Number 208106636
Weight (in lbs) 155.640
HSPF 9.5
HSPF2 7.8
Cooling BTU 36,000 BTU
Heating BTU 40,000 BTU
Maximum CFM 1188.24
Decibel Level (dBA) 45
Electric Heat Heat Pump
Refrigerant R410A
SEER1 (Efficiency) 18-20
EER 12.5
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 4.5 Amps
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating 5~122
Min/Max Outdoor Temp for Cooling 62~90
Zone Compatibility Single Zone
Mini Split Type Multi-Positional
Width 21.02"
Height 49.02"
Depth 21.02"
Warranty 12 year compressor, 7 year parts with online registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.
