Picture this: you’ve just finished assessing a water-damaged office after a weekend pipe burst. The floors are soaked, the subfloor is saturated, and you’ve got 48 hours to hit your drying goals before mold becomes the next problem. The right equipment makes or breaks that job, and knowing whether you need an axial air mover, a centrifugal unit, or a standard axial fan is the first decision you have to get right.
An axial air mover is a portable, low-profile fan that moves air in a straight line along its rotational axis. It’s designed specifically for high-volume airflow in drying, ventilation, and restoration applications. Unlike household fans, axial air movers are engineered for continuous-duty operation, typically rated between 1,000 and 3,000 CFM (cubic feet per minute), and built to stack or daisy-chain across large job sites.
TD;LR
Axial air movers are the go-to choice for open-area drying and large-scale ventilation, while centrifugal air movers are preferred for targeted, high-pressure drying in confined spaces.
Key Takeaways
- Axial air movers move air in a straight line along the fan axis, typically delivering 1,000 - 3,000 CFM at low static pressure
- Axial air movers are preferred for drying large open areas - subfloor cavities, open-plan offices, warehouses - where centrifugal units would be underpowered for coverage
- Most commercial axial air movers run on standard 120V circuits and support daisy-chaining (3 - 5 units per 15A circuit depending on amperage draw)
- Key specs to compare when buying: CFM rating, amperage draw, noise level (dB), stackability, and whether the unit is GFCI-protected
- The choice between axial and centrifugal air movers depends on your specific job - open-area flooding calls for axial; wall cavities and tight structural spaces call for centrifugal
What is an Axial Air Mover? Definition and How It Works
You’ve seen box fans. An axial air mover is what happens when that same principle gets engineered for a job site. It draws air in through the rear of the housing and expels it forward along the same axis.
Defining Axial Air Movers
An axial air mover draws air in through the rear of the housing and expels it forward along the same axis - the same principle as a propeller or a box fan, but engineered for industrial-grade airflow volumes and continuous operation. The fan blades are pitched at an angle (typically 15°-35°) to maximize volumetric airflow (CFM) while keeping static pressure low. This pitch angle is why axial units excel at moving large volumes of air across open surfaces but are less effective when ducted through tight spaces.
Most commercial axial air movers use a permanently lubricated, thermally protected motor rated for continuous duty - meaning they can run 24/7 without overheating under normal conditions. This matters on a water damage job where you’re leaving equipment running overnight and coming back in the morning to check moisture readings.
Common Types and Uses
There are three main types of air movers: centrifugal, axial, and compact. Here’s how they stack up at a glance:
|
Type |
CFM Range |
Static Pressure |
Best For |
|
Axial air mover |
1,000 - 3,000 CFM |
Low |
Open-area drying, large surface coverage |
|
Centrifugal air mover |
800 - 1,500 CFM |
0.1 - 0.5 in. WC |
Wall cavities, carpet, confined spaces |
|
Compact / snail air mover |
300 - 800 CFM |
Highest |
Under-carpet drying, tight structural voids |
Common uses for axial air movers include,
- Drying wet floors after mold, flood, or spill events
- Helping paint, adhesive, or concrete cure faster on job sites
- Cooling workers in hot areas during construction or remediation
- Drying subfloor assemblies and open concrete slabs
- Ventilating crawl spaces when paired with flexible ducting
- Blowing away fumes or dust in workshops and industrial spaces
Air movers are a core piece of any water damage restoration kit, right alongside LGR dehumidifiers and air scrubbers. When you’re dealing with a mold flood scenario, getting air moving fast across wet surfaces is what drives evaporation and keeps drying timelines on track.
How Axial Air Movers Work, Airflow Mechanics Explained
The performance of an axial air mover comes down to three interacting variables: blade pitch, motor RPM, and housing design, and understanding how they interact helps you choose the right unit for your specific drying or ventilation job.
Blade Pitch and CFM Output
Blade pitch is the angle at which the fan blades are set relative to the plane of rotation. A steeper pitch (closer to 35°) moves more air volume per revolution but requires more motor torque. A shallower pitch (closer to 15°) spins more freely but delivers less CFM. Most commercial axial air movers are tuned in the 20°-30° range to balance airflow volume against motor load and noise.
CFM (cubic feet per minute) is the number that matters most for drying applications. It tells you how much air volume the unit moves per minute at free-air delivery - meaning with no obstructions or ducting attached. Always check the manufacturer’s spec sheets for free-air CFM, not CFM measured against static pressure, which will always be lower.
Motor RPM and Continuous Duty
Motor RPM determines how fast the blades spin and directly affects both CFM output and noise level. Most commercial axial air movers operate between 1,000 and 1,750 RPM. Higher RPM means more airflow but also more noise - typically in the 65 - 75 dB range for axial units. If you’re working in an occupied space, that’s worth factoring in.
The motor’s duty rating is equally important. A thermally protected, continuously rated motor can run around the clock without tripping or burning out. Motors without thermal protection are a liability on overnight drying jobs - you come back in the morning, and the unit has shut down (or worse, failed) mid-job.
Housing Design and Airflow Pattern
The housing shape determines how the air exits the unit and how far it travels across a surface. Low-profile axial air mover housings - typically 5 - 8 inches tall - are designed to direct airflow at a low angle across floors and walls, maximizing the evaporation rate at the surface level where moisture actually lives.
Turbulent airflow at the surface boundary layer is what drives evaporation. Axial air movers create enough turbulence at the surface to break up the saturated air layer clinging to wet materials, allowing drier ambient air to contact the surface and pull moisture away. Pair that with an LGR dehumidifier pulling humidity out of the room, and you’ve got a complete drying system. Air flow meters can help you verify actual airflow at the surface during setup - useful when you’re documenting a drying plan for insurance purposes.

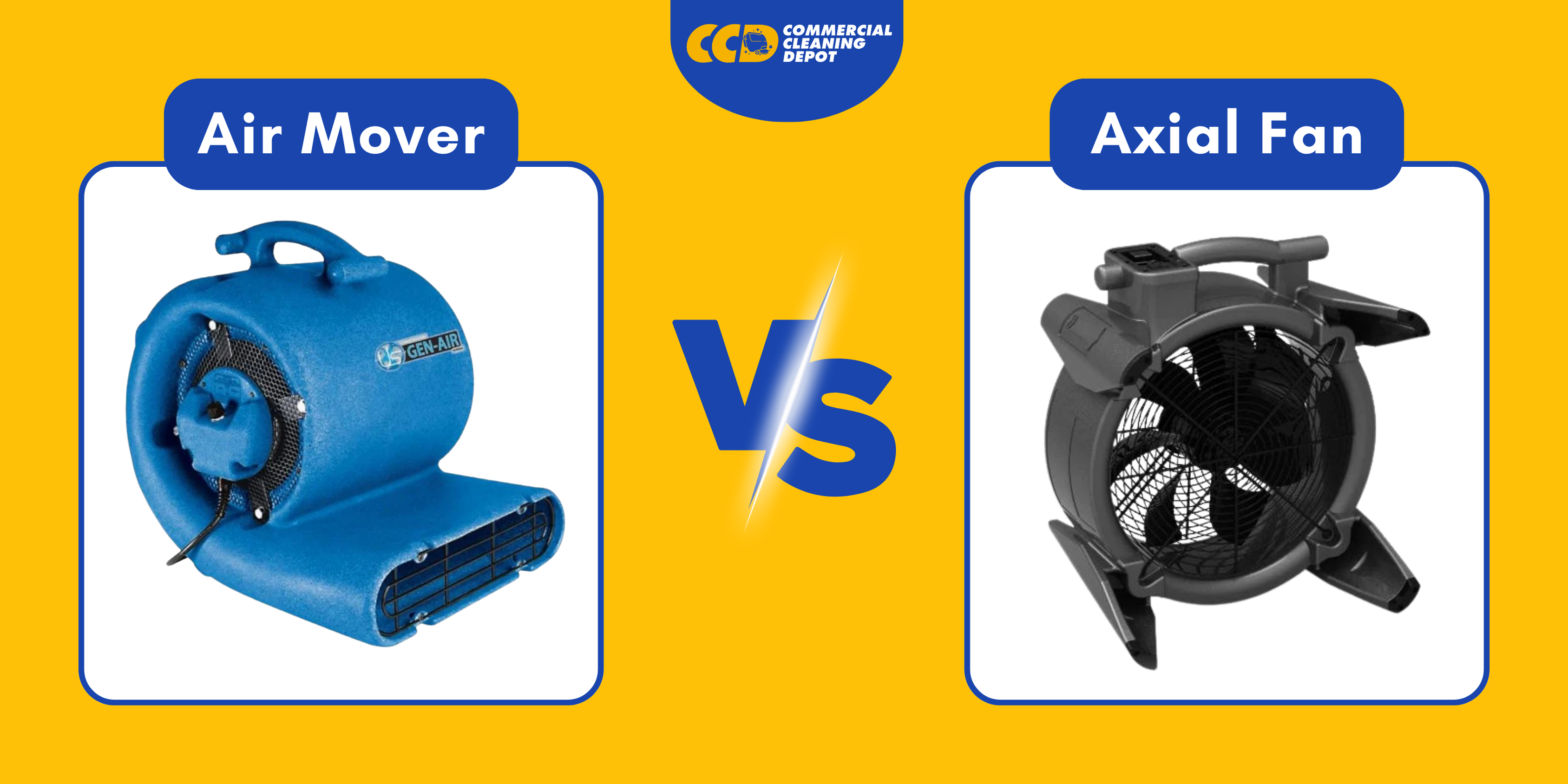

How Axial Air Movers Differ from Standard Axial Fans
Here’s a question restoration contractors get asked all the time: “Can’t I just use a big box fan?” The short answer is no - and the reason comes down to engineering.
What Makes a Commercial Axial Air Mover Different
A standard axial fan - like a box fan or wall-mount exhaust fan - is designed for intermittent residential use and typically moves 200 - 800 CFM. An axial air mover is a commercial-grade evolution of the same principle, engineered for 1,000-3,000+ CFM, rugged job-site housings, and 24-hour continuous operation.
The key engineering difference is the motor. Residential axial fans use open, non-thermally protected motors. Axial air movers use sealed, thermally protected motors with automatic reset - critical for unattended overnight drying jobs. If the motor overheats, it trips and resets automatically rather than burning out or creating a fire hazard.
Axial air movers are also constant-volume devices - their CFM output stays relatively stable across varying conditions, which makes drying calculations predictable for restoration professionals. When you’re logging moisture readings and reporting to an insurance adjuster, that consistency matters; you can’t build a reliable drying plan around equipment with unpredictable output.
Build Quality and Job-Site Durability
Commercial axial air movers are built from rotomolded polyethylene or reinforced polymer housings that can take the abuse of daily job-site use - being stacked, slid across concrete, loaded into trailers, and dropped. Residential box fans are not. The daisy-chain outlet built into most commercial units is another feature you won’t find on a hardware store fan - it’s what allows you to run multiple units from a single power source without running extension cords across a job site.
Axial Air Mover vs. Centrifugal Air Mover, Key Differences
This is the comparison that actually matters for most restoration and construction buyers. Both are “air movers” - but they’re built for different jobs.
Performance Differences
A typical commercial axial air mover delivers 1,500 - 2,800 CFM at near-zero static pressure. A centrifugal air mover of similar size delivers 800 - 1,500 CFM but at 0.1 - 0.5 inches of water column (WC) static pressure - enough to force air under carpet or into wall cavities. That pressure difference is the whole ballgame.
- Axial air mover, 1,500 - 2,800 CFM, near-zero static pressure, open-area drying
- Centrifugal air mover, 800 - 1,500 CFM, 0.1 - 0.5 in. WC static pressure, confined-space drying
- Compact / snail air mover, 300 - 800 CFM, highest static pressure, under-carpet and structural cavity drying
Noise, Power Draw, and Portability
Axial air movers typically operate at 65-75 dB while centrifugal units run 55-68 dB. For occupied spaces, centrifugal units are quieter. For unoccupied large-area drying, the noise trade-off is acceptable - and the CFM advantage is worth it.
On power draw, most axial air movers draw 2 - 5 amps at 120V, allowing 3 - 5 units per standard 15-amp circuit. Centrifugal units often draw 3-7 amps, limiting how many can run simultaneously. That amperage difference adds up fast when you’re deploying 10+ units on a large loss.
Axial air movers tend to weigh 15-30 lbs and feature low-profile designs that slide under furniture or equipment. Centrifugal “snail” units are bulkier at 20 - 40 lbs. On a job where you’re moving equipment between floors or in and out of a trailer multiple times a day, that weight difference is real.
Efficiency and Suitability
Axial air movers are more energy-efficient for large open-area drying. Their high CFM output covers more square footage per unit, which means fewer units running simultaneously for the same coverage. Centrifugal units earn their keep in Class 3 and 4 water damage scenarios (per IICRC S500) where air must be forced into structural assemblies.
For small or confined spaces, centrifugal air movers are the better call. For open floors, large rooms, and warehouse-scale drying, axial air movers are the right tool.
Axial Air Mover Buying Guide: What to Look For
When comparing axial air movers, five specifications separate a unit that performs on a demanding restoration job from one that falls short: CFM output, amperage draw, noise level, circuit compatibility, and build quality.
CFM Output
Always look for free-air delivery CFM from the manufacturer’s spec sheets, not CFM measured against a static pressure load. Entry-level commercial units deliver 1,000 - 1,500 CFM. Professional-grade units hit 2,000 - 3,000 CFM. For most water damage restoration jobs, you want units in the 1,500 - 2,500 CFM range - enough to cover 50 - 100 square feet of wet surface per unit without over-deploying equipment.
Amperage Draw and Circuit Compatibility
This spec determines how many units you can run per circuit - which directly affects job-site setup time and electrical safety. Look for units drawing 2.0 - 3.5 amps at 120V if you want to run 4 - 5 units per 15-amp circuit. Units drawing 4-5 amps limit you to 3 units per circuit (staying within the 80% NEC load rule). Always check the amp rating on the label, not just the wattage.
Noise Level (dB)
If you’re working in a partially occupied building or a hotel, noise matters. Most axial air movers run 65 - 75 dB - roughly the volume of a normal conversation to a vacuum cleaner. Some newer models (the XPOWER X-34AR, for example) have been engineered for lower noise output without sacrificing CFM. Check the dB rating in the spec sheets before committing.
GFCI Protection and Electrical Safety
Any axial air mover used in a wet environment needs GFCI (Ground Fault Circuit Interrupter) protection - either built into the unit or provided by the outlet. Many professional-grade units include a built-in GFCI plug. If yours doesn’t, use a GFCI adapter. This is non-negotiable on water damage jobs.
Build Quality, Housing, Stackability, and Daisy-Chain Outlets
Look for rotomolded polyethylene housings - they handle job-site abuse better than thin plastic shells. Confirm the unit has a built-in daisy-chain outlet so you can link multiple units from one power source. Check whether the housing has molded feet or rails rated for vertical stacking (most commercial units support 2-3 units high). Speed settings (typically 2 - 3 speeds) give you flexibility for different drying phases.
Top brands to evaluate: Dri-Eaz, XPOWER, B-Air, CFM Pro, and Soleaire. Each has a distinct lineup with different CFM-to-amp ratios, weight profiles, and warranty lengths (typically 1-3 years for commercial units). Pull the spec sheets side by side before buying - the differences matter more than the brand name.
Axial Air Movers in Water Damage Restoration
Water damage restoration is the primary commercial application for axial air movers, and understanding how they fit into a structured drying system - governed by IICRC S500 standards - helps restoration contractors deploy them correctly and document results for insurance purposes.
The Role of Axial Air Movers in a Drying System
When you walk into a mold flood or water damage loss, your job is to set up a drying system, not just drop equipment and leave. A drying system has three components working together: air movers to accelerate surface evaporation, LGR (Low Grain Refrigerant) dehumidifiers to remove the resulting moisture from the air, and air scrubbers or negative air machines to control airborne particulates and maintain air quality during remediation.
Axial air movers handle the first part - getting moisture off wet surfaces and into the air. The LGR dehumidifier then pulls that moisture out of the air, maintaining a low-humidity environment that sustains rapid drying. Without the dehumidifier, the air movers just move humid air around. Without the air movers, the dehumidifier is working against a stagnant boundary layer at the surface. They work as a system.
IICRC S500 Standards and Equipment Placement
The IICRC S500 standard is the industry reference for water damage restoration. It classifies losses by water damage class (1 through 4) and category (1 through 3), and those classifications drive equipment selection and placement.
- Class 1, Minimal absorption, small area. Fewer air movers needed; 1 unit per 50- 100 sq ft of affected surface is a common starting point.
- Class 2, Significant absorption into walls and flooring. More units, potentially supplemented by centrifugal air movers for wall cavity drying.
- Class 3, Overhead saturation, widespread absorption. Maximum equipment density; axial air movers for open areas, centrifugal units for structural cavities.
- Class 4, Specialty drying (hardwood, concrete, plaster). Often requires floor drying mats, injectidry systems, and extended drying times.
The S500 standard recommends calculating placement based on moisture readings and material type - not just square footage. Use a moisture meter to map the loss before placing equipment, and adjust placement as readings change over the drying period.
Drying Logs and Documentation
Restoration contractors working with insurance carriers need to document the drying process - equipment deployed, placement, daily moisture readings, and drying goals. Drying logs and moisture mapping software (Encircle and Dash are two widely used platforms) record axial air mover placement as part of the formal drying plan. That documentation protects you during billing disputes and demonstrates compliance with IICRC standards.
Psychrometrics - the relationship between temperature, relative humidity, and moisture content - drives drying decisions. As the drying system runs, you’re tracking relative humidity, moisture content of affected materials, and the drying goal (the target moisture content for each material type). Axial air movers accelerate the evaporation side of that equation; your LGR dehumidifier and monitoring data tell you whether the system is performing.
Top Axial Air Mover Brands and Models Compared
The axial air mover market is dominated by a handful of professional-grade brands - each with distinct strengths in CFM output, portability, and job-site durability.
Brand and Model Overview
Dri-Eaz Velo PRO - One of the most recognized names in restoration equipment. The Velo PRO delivers approximately 2,500-3,000 CFM, runs on a 3.0-amp draw, and features a low-profile housing designed for stacking and daisy-chaining. Dri-Eaz units carry a 2-year warranty and are built for the kind of daily abuse that restoration contractors put equipment through. Weight is around 18-20 lbs.
XPOWER X-34AR - A strong mid-range option with a focus on noise reduction. The X-34AR moves approximately 1,000-1,500 CFM at a 2.3-amp draw, making it one of the more circuit-friendly options for running multiple units simultaneously. Built-in GFCI protection and a daisy-chain outlet are standard. Weight is around 17 lbs, with a 1-year warranty.
B-Air Firtana-20X - An entry-level commercial unit that punches above its price point. Delivers around 1,000 - 1,200 CFM at a 2.0-amp draw. Lightweight at approximately 15 lbs, stackable, and includes a daisy-chain outlet. Good choice for contractors building out a fleet on a budget. 1-year warranty.
CFM Pro Compact - As the name suggests, this unit prioritizes portability. CFM output is in the 1,000 - 1,400 CFM range. The compact footprint makes it useful for tight spaces where a full-size axial unit won’t fit. 1-year warranty.
Soleaire Super Monsoon - A high-output option for contractors who need maximum CFM per unit. Delivers up to 3,000+ CFM, with a correspondingly higher amp draw (around 4.5 - 5.0 amps). Best suited for large open-area losses where you want fewer units running at higher output rather than more units at lower output. 1-year warranty.
How to Choose Between Them
The right unit depends on your typical job profile. If you’re running mostly residential water damage jobs (500 - 2,000 sq ft), the B-Air Firtana-20X or XPOWER X-34AR give you solid performance at a price that makes fleet-building practical. If you’re handling commercial losses regularly, the Dri-Eaz Velo PRO or Soleaire Super Monsoon justify the higher price point through CFM output and durability. Always pull the spec sheets for the specific models you’re comparing - CFM, amperage, weight, and warranty length are the four numbers that matter most.
Practical Considerations for Axial Air Movers and Fans
Deploying axial air movers effectively isn’t just about dropping units on a wet floor. Space requirements, placement strategy, and maintenance habits all affect how well your equipment performs - and how long it lasts.
Space and Volume Requirements
A common rule of thumb in water damage restoration is one axial air mover per 50-100 square feet of wet surface area. However, IICRC S500 guidelines recommend calculating placement based on moisture readings and material type rather than square footage alone. For a 500 sq ft room with wet carpet and pad, you’re typically looking at 5-10 units plus at least one LGR dehumidifier.
Axial air movers can be positioned flat on the floor, angled against walls, or stacked vertically. Their low-profile housing (typically 5-8 inches tall) allows them to direct airflow under doors, furniture, and equipment without repositioning the object. That flexibility matters on a real job where you’re working around a client’s belongings.
Standard commercial axial air movers measure roughly 18 - 22 inches in diameter and 5 - 8 inches tall - compact enough to fit in tight spaces while still moving serious air volume. Compare that to industrial axial fans, which can be several feet in diameter and require significant clearance for intake and outflow.
Maintenance and Longevity
Commercial axial air movers from major brands (Dri-Eaz, XPOWER, B-Air, CFM Pro) typically carry 1 - 3 year warranties and are designed for 3,000 - 5,000 hours of operational life with basic maintenance. Here’s what basic maintenance actually looks like,
- Clean the intake grille monthly, or after each job on heavy-use equipment
- Inspect the power cord and plug for damage before each use
- Check for blade wobble or unusual vibration - a sign of blade damage or bearing wear
- Test GFCI protection quarterly
- Store upright or in a protective bag to prevent blade damage during transport
Most commercial axial air movers need less hands-on maintenance than industrial axial fans, which require periodic blade balancing, bearing lubrication, and sometimes professional servicing. That simplicity is part of why axial air movers are the preferred tool for restoration contractors who need reliable equipment with minimal downtime.
On stackability, most commercial axial air movers have molded feet or rails that allow vertical stacking of 2 - 3 units for storage and transport. Confirm the specific model’s stack rating before stacking more than two units - not all housings are rated for three-high stacking.
Axial Air Mover Safety and Electrical Considerations
Because axial air movers are routinely used in wet environments - flooded basements, water-damaged offices, rain-soaked construction sites - electrical safety is not optional; it is a job-site requirement.
GFCI Protection and Circuit Loading
Every axial air mover used near water needs GFCI (Ground Fault Circuit Interrupter) protection. Many professional-grade units include a built-in GFCI plug - check the spec sheets before assuming. If your unit doesn’t have built-in GFCI, use a GFCI adapter at the outlet. This applies even if the building’s outlets are GFCI-protected; a built-in GFCI on the unit provides an additional layer of protection when cords are running across wet floors.
On circuit loading, the NEC (National Electrical Code) requires that continuous loads not exceed 80% of a circuit’s rated capacity. On a standard 15-amp, 120V circuit, that means a maximum of 12 amps of continuous load. If your axial air movers draw 2.5 amps each, you can run 4 units per circuit (10 amps total) and stay within the 80% rule. Exceed that limit, and you’re tripping breakers - or worse, creating a fire risk.
On 20-amp circuits (common in commercial buildings), you can run 6 units at 2.5 amps each while staying within the 80% threshold. Know what circuits you’re working with before you start daisy-chaining.
Extension Cords and Cord Management
If you need to use an extension cord with an axial air mover, use a heavy-duty cord rated for the amperage draw. For most commercial axial air movers drawing 2-5 amps, a 12 AWG (American Wire Gauge) cord is the minimum for runs up to 100 feet. Using an undersized cord (14 AWG or lighter) on a continuous-duty motor creates heat buildup in the cord - a fire hazard and a code violation.
Cord management on a job site also means controlling tripping hazards. Route cords along walls and under door thresholds where possible. Use cord covers or tape cords flat to the floor in high-traffic areas. On multi-day jobs, label cords by circuit so you know which units are on which breaker.
UL and ETL Listings
Look for a UL listing or ETL listing on any axial air mover you’re buying for commercial use. These certifications confirm that the unit has been tested to recognized safety standards. Thermal overload protection (automatic reset) is a related feature - it’s what prevents the motor from overheating during continuous operation. Most professional-grade units from Dri-Eaz, XPOWER, B-Air, and CFM Pro include both. Budget units from unknown brands often don’t. That’s a risk not worth taking when the equipment is running unattended in a water-damaged building overnight.
Additional Equipment and Accessories
Axial air movers get more versatile - and more effective - when you pair them with the right accessories. Here’s what’s worth having in your kit.
Attachments and Adapters
Flexible ducting kits (typically 10 - 25 feet of 10-inch or 12-inch diameter duct) attach to the outlet of an axial air mover to direct airflow into wall cavities, under raised flooring, or into crawl spaces - extending the unit’s reach without repositioning. Nozzle adapters focus airflow for targeted drying on specific surfaces. Some models have adjustable feet or wheels for easy positioning on uneven job-site floors.
Floor drying mats (also called drying panels or injectidry mats) connect to axial air movers via a manifold to create a sealed drying system for hardwood floors and subfloors. This technique reduces drying time by 30 - 50% compared to open-air methods - a meaningful difference when you’re on a tight insurance timeline.
Blade guards are worth having on any axial fan or air mover used in areas with foot traffic. They protect workers from spinning blades and are required by some OSHA guidelines in occupied workspaces.
Supplementary Items for Enhanced Performance
LGR (Low Grain Refrigerant) dehumidifiers are the standard pairing for axial air movers in water damage restoration. The air mover accelerates surface evaporation; the LGR dehumidifier removes the resulting moisture from the air, maintaining a low-humidity environment that sustains rapid drying. Don’t run one without the other on a serious water loss.
Air scrubbers (including HEPA-filtered units) pair with axial air movers on mold remediation jobs to control airborne spores during the drying and remediation process. On Category 2 or Category 3 water losses, air scrubbers are often a requirement under IICRC protocols.
Moisture meters and drying logs are the documentation side of the equation. Moisture meters track drying progress at the material level; drying logs (whether paper-based or through software like Encircle or Dash) record equipment placement, daily readings, and drying goals for insurance documentation. Equipment instruments like airflow meters can verify actual CFM at the surface - useful when you’re calibrating a drying system or troubleshooting slow drying progress.
Daisy-chain power cords and GFCI adapters round out the kit. Some axial air movers in the mini series product lines include built-in daisy-chain outlets and onboard GFCI - check the spec sheets for your specific model.
Frequently Asked Questions
What is an axial air mover used for?
Axial air movers are primarily used in water damage restoration to dry wet floors, subfloors, walls, and ceilings. They’re also used in construction for concrete curing, paint drying, and general ventilation on job sites. Their high CFM output makes them the right tool for any application requiring large-volume airflow across open surfaces - mold flood response, post-storm mitigation, and large-area drying are the most common commercial scenarios.
How many CFM does an axial air mover produce?
Most commercial axial air movers produce between 1,000 and 3,000 CFM depending on the model and speed setting. Entry-level units (like the B-Air Firtana-20X) deliver around 1,000 - 1,500 CFM; professional-grade units (like the Dri-Eaz Velo PRO) can reach 2,500 - 3,000 CFM. Always check the manufacturer’s spec sheets for rated CFM at free-air delivery, not against static pressure - those are two different numbers, and the difference matters when you’re sizing a drying system.
How many axial air movers do I need per room?
The IICRC S500 standard recommends calculating equipment placement based on moisture readings and material class, but a common field rule is one air mover per 50-100 square feet of affected area. For a 500 sq ft room with wet carpet and pad, expect to deploy 5 - 10 units, supplemented by at least one LGR dehumidifier. Adjust based on your moisture meter readings as the job progresses - the goal is to hit your drying targets, not to hit a specific unit count.
Can axial air movers be daisy-chained?
Yes - most commercial axial air movers include a built-in outlet that allows daisy-chaining multiple units from a single power source. The number of units per circuit depends on each unit’s amperage draw. On a standard 15-amp, 120V circuit, you can typically run 3 - 5 axial air movers while staying within the NEC’s 80% continuous load rule. Always check the unit’s amp rating on the label and do not exceed 80% of the circuit’s rated capacity - tripping breakers mid-job is a problem you don’t want.
Which is better, axial or centrifugal air mover?
The right choice depends on the job. Axial air movers deliver 1,500 - 2,800 CFM at near-zero static pressure - ideal for drying large open areas like flooded offices, warehouses, and open-plan spaces. In water damage restoration, axial air movers are preferred for Class 1 and Class 2 losses (per IICRC S500). At the same time, centrifugal units are used for Class 3 and Class 4 losses where air must be forced into structural cavities. For most open-area drying jobs, axial air movers win on coverage and circuit efficiency. For wall cavities and under-carpet drying, centrifugal is the better call.
What is the difference between axial and centrifugal air movers in terms of design and application?
Axial air movers push air straight forward along the fan axis, delivering high CFM at low static pressure - best for open surfaces. Centrifugal air movers use a spinning impeller to redirect air outward at higher pressure (0.1-0.5 in. WC), making them effective for forcing air into wall cavities, under carpet, and through tight structural spaces. The design difference translates directly to application: axial for area coverage, centrifugal for penetration into confined spaces. The Focus II is one example of a centrifugal-style unit designed specifically for the latter application.
What are the specific benefits of using centrifugal air movers in industrial settings?
Centrifugal air movers create strong, directed airflow at higher static pressure than axial units. That pressure is what makes them effective for drying equipment, forcing air into tight spaces, and handling applications where the airstream needs to overcome resistance. In industrial settings, they’re often used alongside axial air movers - axial units handle the open-area coverage while centrifugal units target specific problem spots.
What is the difference between axial fans and air movers in commercial environments?
A standard axial fan (box fan, wall exhaust fan) moves 200-800 CFM and is designed for intermittent residential or light commercial use. A commercial axial air mover moves 1,000 - 3,000+ CFM, runs on a thermally protected continuous-duty motor, and is built for job-site conditions. In commercial environments, axial air movers handle water damage restoration, construction drying, and large-area ventilation. Standard axial fans are not rated for the continuous-duty operation those jobs require.
